ADV7392BCPZ-3REEL - Analog Devices

Description: Low Power, Chip Scale 10-Bit SD/HD Video Encoder

Download ADV7392BCPZ-3REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

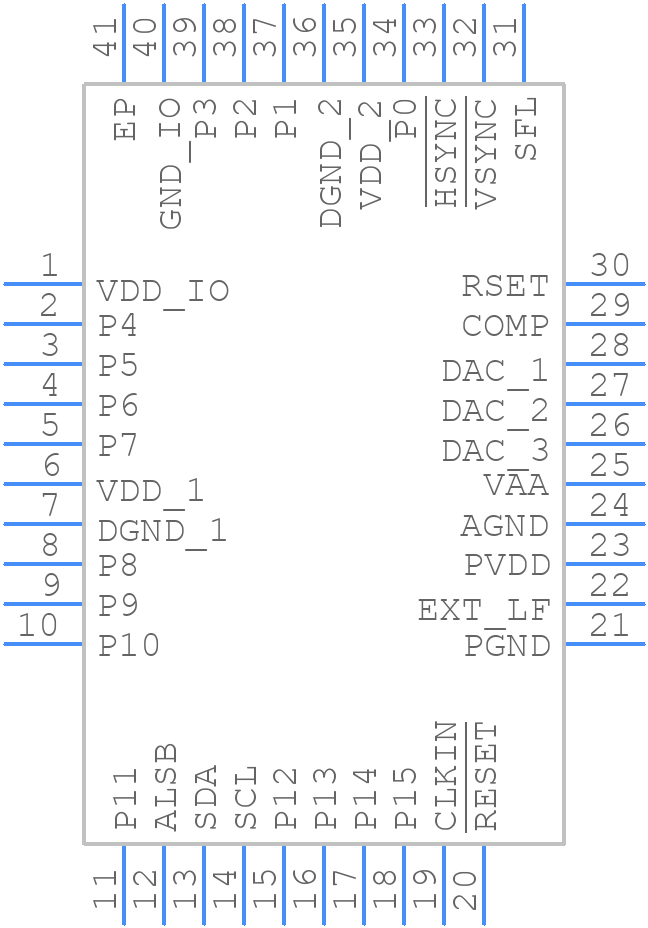

ADV7392BCPZ-3REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7392BCPZ-3REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-40-9)_1...
click to zoom
3D Models
ADV7392BCPZ-3REEL - Analog Devices - 3D model - Quad Flat No-Lead - (CP-40-9)_1...
click to zoom

ADV7392BCPZ-3REEL Details

  • Manufacturer Part Number:

    ADV7392BCPZ-3REEL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    COLOR SIGNAL ENCODER

  • Input Type:

    RGB; R-Y; B-Y; Y

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Video Standard:

    PAL; NTSC

  • Width:

    6 mm

ADV7392BCPZ-3REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV7392BCPZ-3REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the clock signal traces. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To optimize the ADV7392BCPZ-3REEL for low power consumption, use the lowest possible clock frequency, disable unused features, and adjust the bias current settings. Additionally, consider using a lower voltage supply and optimizing the output load impedance.
  • The maximum clock frequency that can be used with the ADV7392BCPZ-3REEL is 170 MHz. However, the actual maximum clock frequency may vary depending on the specific application and PCB layout.
  • To troubleshoot issues with the ADV7392BCPZ-3REEL, start by checking the power supply voltage, clock signal, and input signal integrity. Use an oscilloscope to verify the signal waveforms and check for any signs of signal degradation or distortion.
  • Yes, the ADV7392BCPZ-3REEL can be used in a multi-channel application. However, each channel requires a separate ADV7392BCPZ-3REEL device, and the clock signals must be synchronized across all channels.
