ADV7392BCPZ - Analog Devices

Description: Low Power, Chip Scale 10-Bit SD/HD Video Encoder

Download ADV7392BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

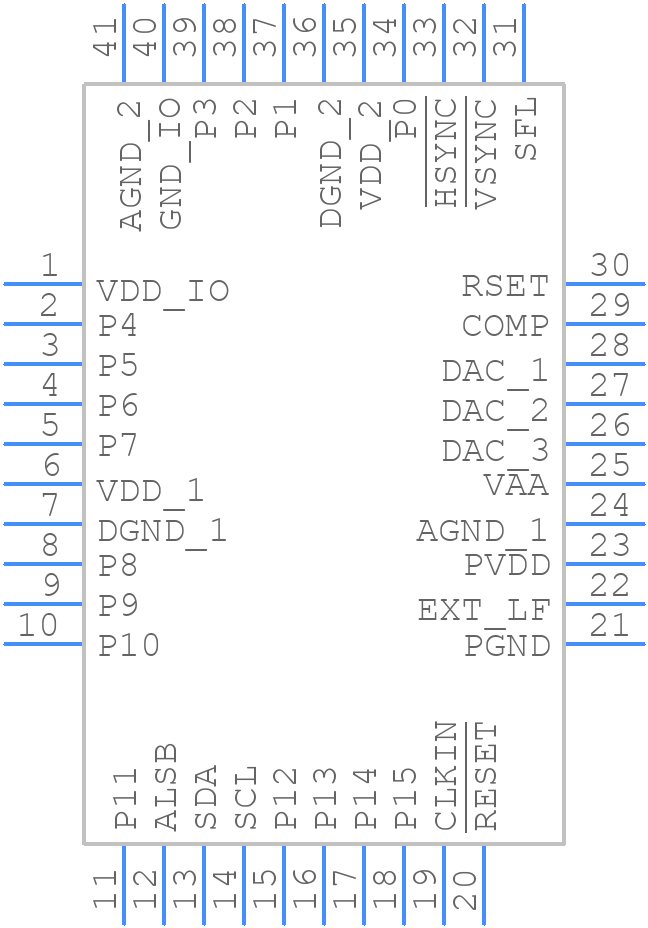

ADV7392BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7392BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-9_2025
click to zoom
3D Models
ADV7392BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-9_2025
click to zoom

ADV7392BCPZ Details

  • Manufacturer Part Number:

    ADV7392BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-9

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    COLOR SIGNAL ENCODER

  • Input Type:

    RGB; R-Y; B-Y; Y

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL; NTSC

  • Width:

    6 mm

ADV7392BCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (VAA) first, followed by the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADV7392BCPZ can be configured for different video standards by setting the appropriate register values. Refer to the datasheet for the specific register settings for each video standard, such as NTSC, PAL, or SECAM.
  • The maximum clock frequency that can be used with the ADV7392BCPZ is 108 MHz. However, the actual clock frequency used may be limited by the specific application and the clock source used.
  • To troubleshoot issues with the ADV7392BCPZ, start by checking the power supply voltages and ensuring that they are within the recommended range. Then, verify that the clock signal is present and stable. If the issue persists, check the register settings and ensure that they are correct for the specific video standard being used.
  • Yes, the ADV7392BCPZ can be used in a multi-chip module (MCM) design. However, special care must be taken to ensure that the thermal and electrical interfaces between the chips are properly managed.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7392BCPZ Overview

Use the download button to access the ADV7392BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV73, or try a keyword search, such as Color Signal Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
