ADV7511WBSWZ-RL - Analog Devices

Description: HDMI/DVI Transmitter 1TX Automotive 64-Pin LQFP EP T/R

Download ADV7511WBSWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV7511WBSWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

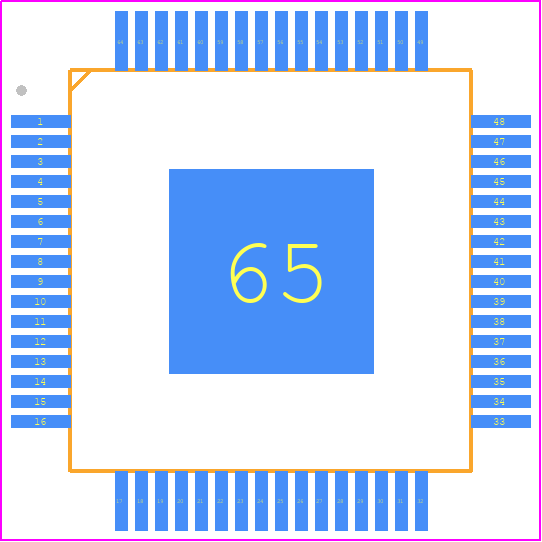

ADV7511WBSWZ-RL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SW-64-2
click to zoom
3D Models
ADV7511WBSWZ-RL - Analog Devices - 3D model - Quad Flat Packages - SW-64-2
click to zoom

ADV7511WBSWZ-RL Details

  • Manufacturer Part Number:

    ADV7511WBSWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    LQFP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    SW-64-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 3.15 TO 3.45

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

ADV7511WBSWZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV7511WBSWZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the HDMI traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADV7511WBSWZ-RL can be configured for a specific HDMI resolution by setting the appropriate registers through the I2C interface. The device supports a range of resolutions, including 480p, 720p, 1080i, and 1080p. The specific register settings can be found in the device's datasheet and programming guide.
  • The ADV7511WBSWZ-RL supports HDMI cable lengths of up to 30 meters at 1080p resolution. However, the actual cable length supported may vary depending on the quality of the cable and the specific application.
  • To troubleshoot HDMI signal integrity issues with the ADV7511WBSWZ-RL, check the HDMI signal quality using an oscilloscope or a signal integrity analyzer. Also, ensure that the device is properly configured and that the HDMI cable is of good quality. Additionally, check the device's power supply and decoupling capacitors to ensure they are properly connected and functioning correctly.
  • Yes, the ADV7511WBSWZ-RL can be used in a multi-channel HDMI application. The device supports up to 4 HDMI channels, making it suitable for applications such as HDMI switches, splitters, and matrices.
