ADV7533BCBZ-RL - Analog Devices

Description: Video ICs MIPI/DSI Rcvr w/ HDMI Transmitter

Download ADV7533BCBZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

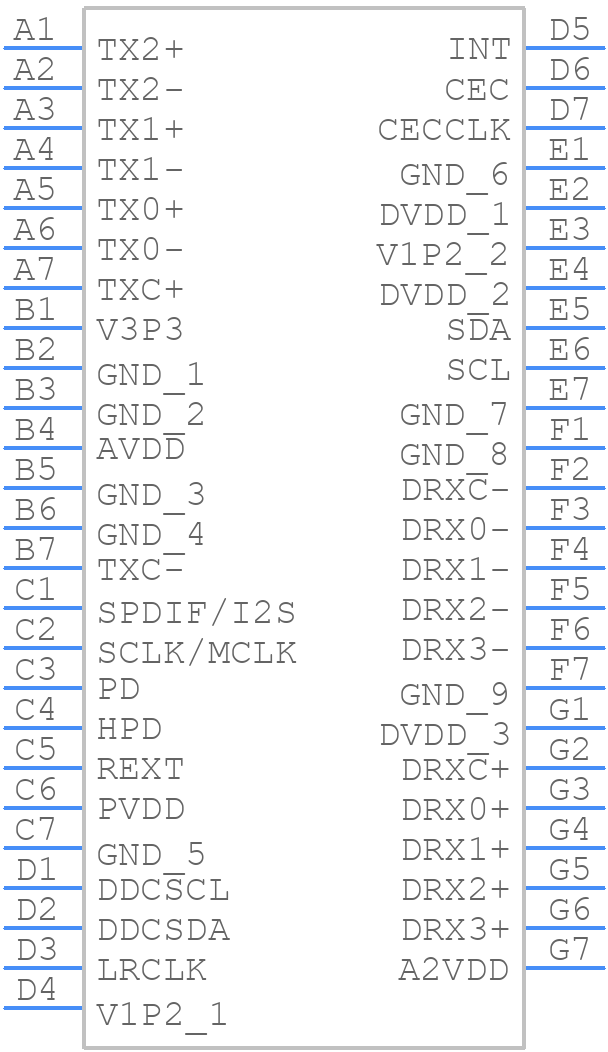

ADV7533BCBZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7533BCBZ-RL - Analog Devices PCB footprint - BGA - BGA - CB-49-1
click to zoom
3D Models
ADV7533BCBZ-RL - Analog Devices - 3D model - BGA - CB-49-1
click to zoom

ADV7533BCBZ-RL Details

  • Manufacturer Part Number:

    ADV7533BCBZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    WLCSP-49

  • Pin Count:

    49

  • Manufacturer Package Code:

    CB-49-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-XBGA-B49

  • JESD-609 Code:

    e1

  • Length:

    3.46 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.66 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.46 mm

ADV7533BCBZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV7533BCBZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the HDMI traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADV7533BCBZ-RL can be configured for a specific HDMI resolution by setting the appropriate registers through the I2C interface. The device supports a range of resolutions, including 480p, 720p, 1080i, and 1080p. The specific register settings can be found in the device's datasheet and programming guide.
  • The ADV7533BCBZ-RL supports HDMI cable lengths of up to 30 meters at 1080p resolution. However, the actual cable length supported may vary depending on the quality of the cable and the specific application.
  • To troubleshoot HDMI signal integrity issues with the ADV7533BCBZ-RL, check the HDMI signal quality using an oscilloscope or a signal generator. Verify that the HDMI transmitter is properly configured and that the cable is of good quality. Also, check the device's registers to ensure that the HDMI transmitter is properly configured.
  • Yes, the ADV7533BCBZ-RL can be used in a multi-point HDMI application. The device supports multiple HDMI receivers and can be configured to switch between different HDMI sources. However, the specific implementation details will depend on the application requirements and the system design.
