ADV7604BBCZ-5 - Analog Devices

Description: ANALOG DEVICES - ADV7604BBCZ-5 - VIDEO/GRAPHIC DIGITIZER, HDMI, CSPBGA260

Download ADV7604BBCZ-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV7604BBCZ-5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

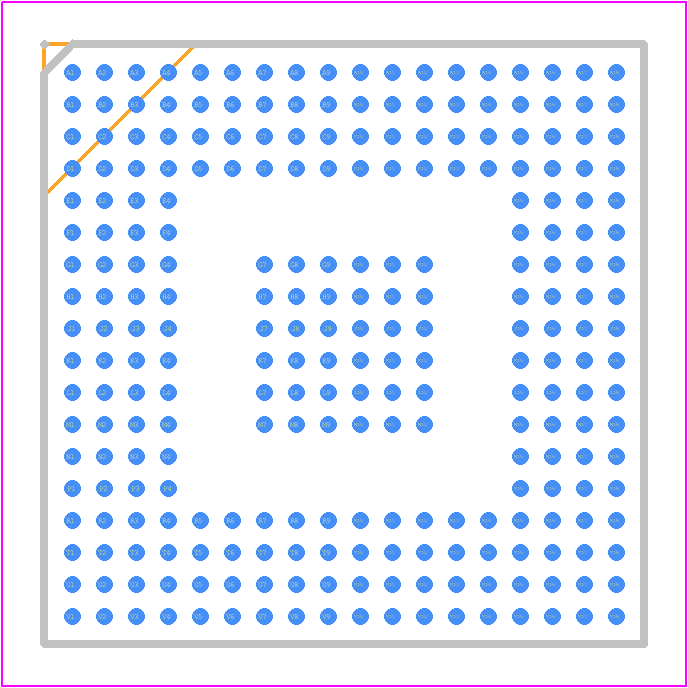

ADV7604BBCZ-5 - Analog Devices PCB footprint - BGA - BGA - SA39-11SRWA
click to zoom
3D Models
ADV7604BBCZ-5 - Analog Devices - 3D model - BGA - SA39-11SRWA
click to zoom

ADV7604BBCZ-5 Details

  • Manufacturer Part Number:

    ADV7604BBCZ-5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CSP-260

  • Pin Count:

    260

  • Manufacturer Package Code:

    BC-260-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B260

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    260

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

ADV7604BBCZ-5 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the 1.8V digital supply (VDD) first, followed by the 3.3V analog supply (AVDD) and then the 1.2V core supply (CVDD). This sequence helps to prevent latch-up and ensures proper device operation.
  • The ADV7604BBCZ-5 can be configured for different video input formats using the I2C interface. The device has a set of registers that control the video input format, such as the video standard, resolution, and clock frequency. Refer to the datasheet and the I2C programming guide for more information.
  • The ADV7604BBCZ-5 can support cable lengths of up to 10 meters (33 feet) for HDMI 1.4 and 15 meters (49 feet) for HDMI 2.0, depending on the cable quality and the signal frequency. However, it's recommended to use high-quality cables and to follow the HDMI specification guidelines for cable length and termination.
  • To troubleshoot issues with the ADV7604BBCZ-5, start by checking the power supplies, clock signals, and I2C interface. Verify that the device is properly configured and that the video input format is correctly set. Use an oscilloscope to check the video signals and clock frequencies. Also, refer to the datasheet and application notes for troubleshooting guidelines and FAQs.
  • The ADV7604BBCZ-5 is designed specifically for HDMI video signals and may not work correctly with non-HDMI video sources. However, you can use an external video converter or scaler to convert the non-HDMI signal to HDMI before feeding it into the ADV7604BBCZ-5.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7604BBCZ-5 Overview

Use the download button to access the ADV7604BBCZ-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV76, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
