ADV7604BBCZ-5P - Analog Devices

Description: ADV7604BBCZ-5P, Video Driver 12-Channel 60dB RGB, YcrCb 260-Pin CSPBGA

Download ADV7604BBCZ-5P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV7604BBCZ-5P - Analog Devices - PCB symbol
click to zoom
PCB Footprints

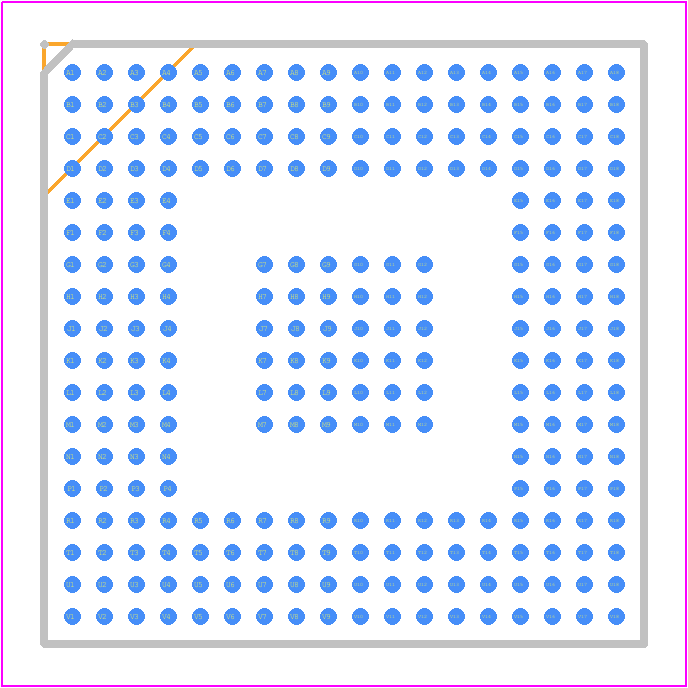

ADV7604BBCZ-5P - Analog Devices PCB footprint - BGA - BGA - 260-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-260-1)
click to zoom
3D Models
ADV7604BBCZ-5P - Analog Devices - 3D model - BGA - 260-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-260-1)
click to zoom

ADV7604BBCZ-5P Details

  • Manufacturer Part Number:

    ADV7604BBCZ-5P

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CSP-260

  • Pin Count:

    260

  • Manufacturer Package Code:

    BC-260-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B260

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    260

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

ADV7604BBCZ-5P Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the HDMI connector, and the analog and digital signals should be separated to minimize noise and crosstalk.
  • The ADV7604BBCZ-5P can be configured using the I2C interface. The device has several registers that control the HDMI input mode, such as the input mode select register (0x10) and the HDMI mode register (0x11). Refer to the datasheet for the specific register settings for each input mode.
  • The ADV7604BBCZ-5P supports HDMI cable lengths up to 30 meters at 1080p resolution and up to 15 meters at 4K resolution. However, the actual cable length supported may vary depending on the quality of the cable and the specific application.
  • Use an oscilloscope to measure the HDMI signal at the input and output of the ADV7604BBCZ-5P. Check for signal amplitude, jitter, and eye diagram to identify any signal integrity issues. Also, verify that the HDMI signal is within the specified voltage and frequency ranges.
  • Yes, the ADV7604BBCZ-5P supports HDMI 2.0 sources up to 4K resolution at 60 Hz. However, the device may require additional configuration and setup to support the higher bandwidth and data rates of HDMI 2.0.
