ADV7611BSWZ-RL - Analog Devices

Description: Video ICs 1 INPUT LOW POWER STAND ALONE HDMI 1.4RX

Download ADV7611BSWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV7611BSWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

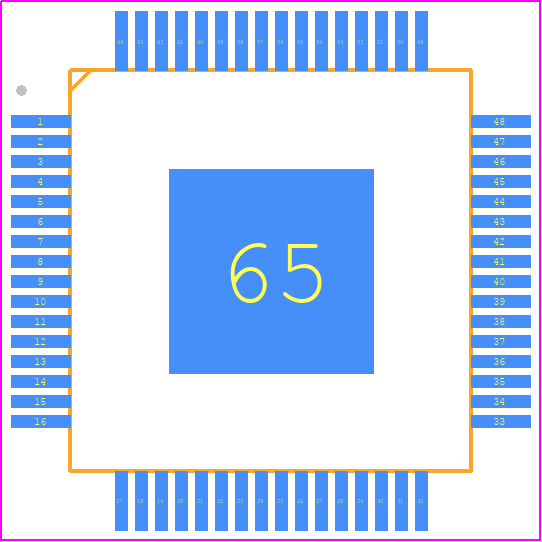

ADV7611BSWZ-RL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SW-64-2-1
click to zoom
3D Models
ADV7611BSWZ-RL - Analog Devices - 3D model - Quad Flat Packages - SW-64-2-1
click to zoom

ADV7611BSWZ-RL Details

  • Manufacturer Part Number:

    ADV7611BSWZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:51.951

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    64

  • Manufacturer Package Code:

    SW-64-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LINE RECEIVER

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

ADV7611BSWZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV7611BSWZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the HDMI traces. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADV7611BSWZ-RL can be configured using the I2C interface. The device has a set of registers that can be programmed to select the HDMI input, configure the EDID, and set the audio and video processing settings. Refer to the datasheet for the register map and programming guide.
  • The ADV7611BSWZ-RL supports HDMI cable lengths up to 30 meters at 1080p resolution and up to 15 meters at 4K resolution. However, the actual cable length supported may vary depending on the quality of the cable and the signal integrity.
  • To troubleshoot HDMI signal issues, check the HDMI input signal quality, ensure that the ADV7611BSWZ-RL is properly configured, and verify that the device is receiving a valid EDID from the sink device. Use an oscilloscope to check the HDMI signal integrity and use the ADV7611BSWZ-RL's built-in diagnostic features to identify any issues.
  • Yes, the ADV7611BSWZ-RL can be used in a multi-input HDMI switch application. The device has a built-in HDMI switch that can be controlled using the I2C interface. The ADV7611BSWZ-RL can switch between multiple HDMI inputs and select the active input based on the I2C commands.
