ADV7611BSWZ - Analog Devices

Description: HDMI Receiver 2RX Automotive 64-Pin LQFP

Download ADV7611BSWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV7611BSWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

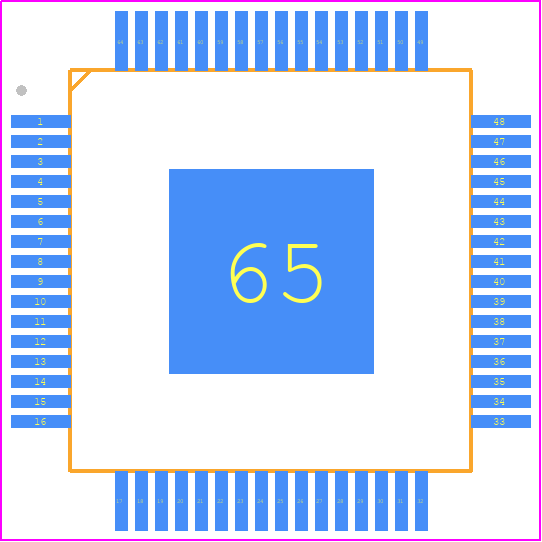

ADV7611BSWZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ADV7611BSWZ
click to zoom
3D Models
ADV7611BSWZ - Analog Devices - 3D model - Quad Flat Packages - ADV7611BSWZ
click to zoom

ADV7611BSWZ Details

  • Manufacturer Part Number:

    ADV7611BSWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    10 X 10 MM, ROHS COMPLIANT, MS-026BCD-HD, LQFP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    SW-64-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

ADV7611BSWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV7611BSWZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the HDMI traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADV7611BSWZ can be configured for a specific HDMI input mode using the I2C interface. The device has several registers that control the input mode, such as the HDMI mode register (0x01) and the input select register (0x02). Consult the datasheet for the specific register settings for each input mode.
  • The ADV7611BSWZ supports HDMI cable lengths up to 30 meters at 1080p resolution and up to 15 meters at 4K resolution. However, the actual cable length supported may vary depending on the quality of the cable and the specific application.
  • To troubleshoot HDMI signal integrity issues with the ADV7611BSWZ, check the HDMI signal quality using an oscilloscope or a signal generator. Verify that the HDMI signal is within the specified voltage and frequency ranges. Also, check the PCB layout and ensure that the HDMI traces are properly routed and terminated.
  • Yes, the ADV7611BSWZ can be used in a multi-input HDMI switch application. The device has a built-in HDMI input selector that allows it to switch between multiple HDMI inputs. The input selector can be controlled using the I2C interface.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7611BSWZ Overview

Use the download button to access the ADV7611BSWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV76, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
