ADV7611WBSWZ - Analog Devices

Description: Video ICs HDCPlicense required see product comment

Download ADV7611WBSWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV7611WBSWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

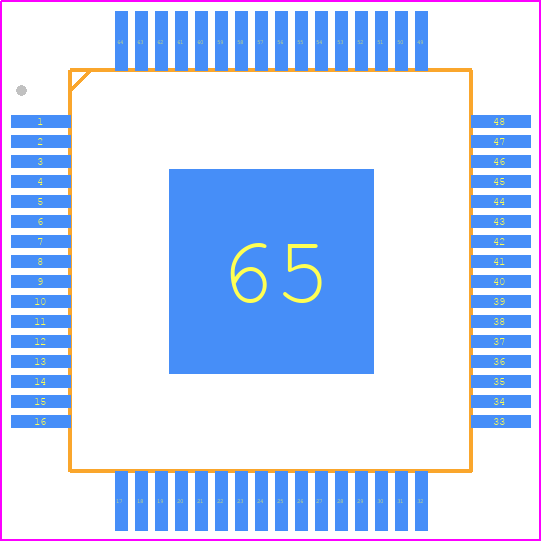

ADV7611WBSWZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SW-64-2
click to zoom
3D Models
ADV7611WBSWZ - Analog Devices - 3D model - Quad Flat Packages - SW-64-2
click to zoom

ADV7611WBSWZ Details

  • Manufacturer Part Number:

    ADV7611WBSWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    10 X 10 MM, ROHS COMPLIANT, MS-026BCD-HD, LQFP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    SW-64-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

ADV7611WBSWZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signals separate, and use a common mode filter to reduce EMI. Refer to the ADI application note AN-1273 for more details.
  • Use the I2C interface to configure the ADV7611WBSWZ. Set the appropriate registers to select the input format, such as HDMI or component video. Refer to the datasheet and the ADI software development kit (SDK) for more information.
  • The ADV7611WBSWZ supports HDMI cable lengths up to 30 meters (100 feet) at 1080p resolution, and up to 15 meters (50 feet) at 4K resolution, depending on the cable quality and the specific application.
  • Use the ADI evaluation board and the SDK to debug the issue. Check the power supply, clock signals, and I2C communication. Use an oscilloscope to verify the video signals and clock frequencies. Refer to the ADI application note AN-1273 for troubleshooting guidelines.
  • Yes, the ADV7611WBSWZ is highly configurable and can support non-standard video formats. However, this may require custom programming and testing to ensure compatibility. Contact ADI support for more information and guidance.
