ADV7625KBCZ-8-RL - Analog Devices

Description: Video ICs 5:2 Crosspoint TRX,audio I/O,OSD,16b TTL

Download ADV7625KBCZ-8-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV7625KBCZ-8-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

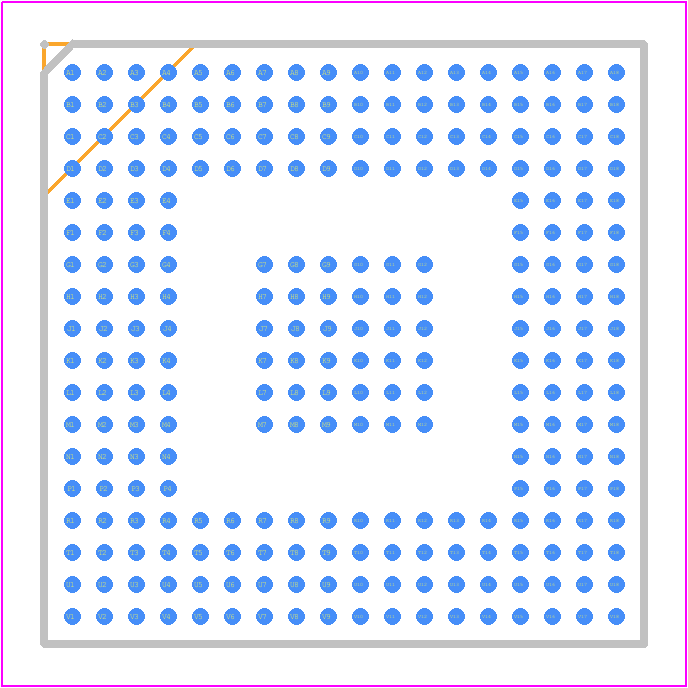

ADV7625KBCZ-8-RL - Analog Devices PCB footprint - BGA - BGA - 260-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-260-1)
click to zoom
3D Models
ADV7625KBCZ-8-RL - Analog Devices - 3D model - BGA - 260-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-260-1)
click to zoom

ADV7625KBCZ-8-RL Details

  • Manufacturer Part Number:

    ADV7625KBCZ-8-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    15 X 15 MM, ROHS COMPLIANT, MO-275KKAB-1, CSP-260

  • Pin Count:

    260

  • Manufacturer Package Code:

    BC-260-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B260

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    260

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

ADV7625KBCZ-8-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV7625KBCZ-8-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the HDMI traces. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADV7625KBCZ-8-RL can be configured for different HDMI versions (e.g., HDMI 1.4, HDMI 2.0) by setting the appropriate registers and pins. Refer to the datasheet and the HDMI specification for more information.
  • The ADV7625KBCZ-8-RL supports HDMI cable lengths up to 30 meters at 10.2 Gbps. However, the actual cable length supported may vary depending on the cable quality and the system design.
  • To troubleshoot HDMI signal integrity issues, use an oscilloscope to measure the HDMI signal quality, check the HDMI cable and connector quality, and ensure that the ADV7625KBCZ-8-RL is properly configured and powered.
  • The ADV7625KBCZ-8-RL is designed specifically for HDMI applications. While it may be possible to use it in a non-HDMI application, it is not recommended and may not meet the required specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7625KBCZ-8-RL Overview

Use the download button to access the ADV7625KBCZ-8-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV76, or try a keyword search, such as Other Consumer ICs
