ADV7626KBCZ-8-RL - Analog Devices

Description: 3GHz HDMI 2:2 cross point Transceiver with On-Screen Display

Download ADV7626KBCZ-8-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV7626KBCZ-8-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

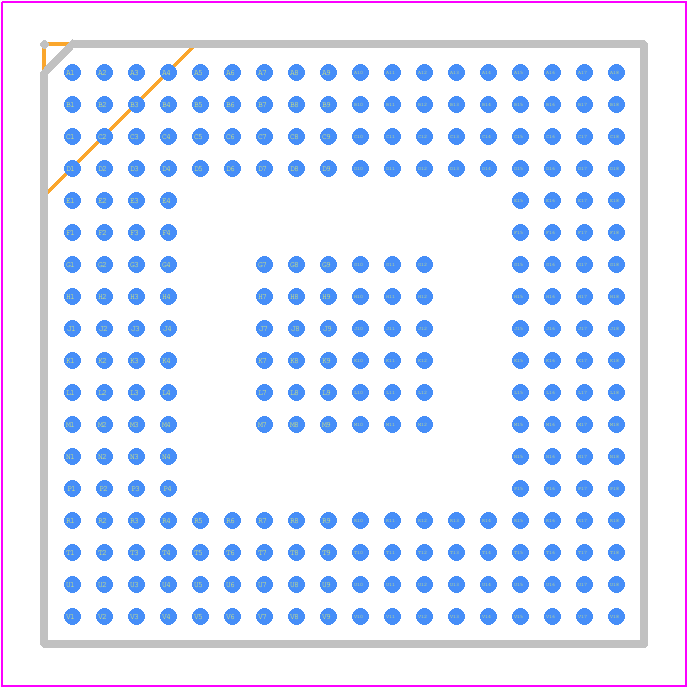

ADV7626KBCZ-8-RL - Analog Devices PCB footprint - BGA - BGA - 260-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-260-1)
click to zoom
3D Models
ADV7626KBCZ-8-RL - Analog Devices - 3D model - BGA - 260-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-260-1)
click to zoom

ADV7626KBCZ-8-RL Details

  • Manufacturer Part Number:

    ADV7626KBCZ-8-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSP-260

  • Pin Count:

    260

  • Manufacturer Package Code:

    BC-260-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B260

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    260

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

ADV7626KBCZ-8-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV7626KBCZ-8-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the HDMI traces. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliable HDMI 2.0 compliance, follow the recommended PCB layout, use high-quality HDMI connectors, and ensure that the device is properly configured and calibrated. Additionally, perform thorough testing and validation to ensure compliance with the HDMI 2.0 specification.
  • The ADV7626KBCZ-8-RL supports cable lengths up to 30 meters at 6 Gbps and up to 15 meters at 12 Gbps, assuming a high-quality HDMI cable with minimal attenuation.
  • To troubleshoot HDMI signal integrity issues, use an oscilloscope to measure the HDMI signal quality, check for proper termination and impedance matching, and verify that the device is properly configured and calibrated. Also, ensure that the HDMI cable and connectors are of high quality and properly seated.
  • The typical power consumption of the ADV7626KBCZ-8-RL is around 1.2W, but this can vary depending on the specific application and operating conditions. Refer to the datasheet for more detailed power consumption information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7626KBCZ-8-RL Overview

Use the download button to access the ADV7626KBCZ-8-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV76, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
