ADV7626KBCZ-8 - Analog Devices

Description: 3GHz HDMI 2:2 cross point Transceiver with On-Screen Display

Download ADV7626KBCZ-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV7626KBCZ-8 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

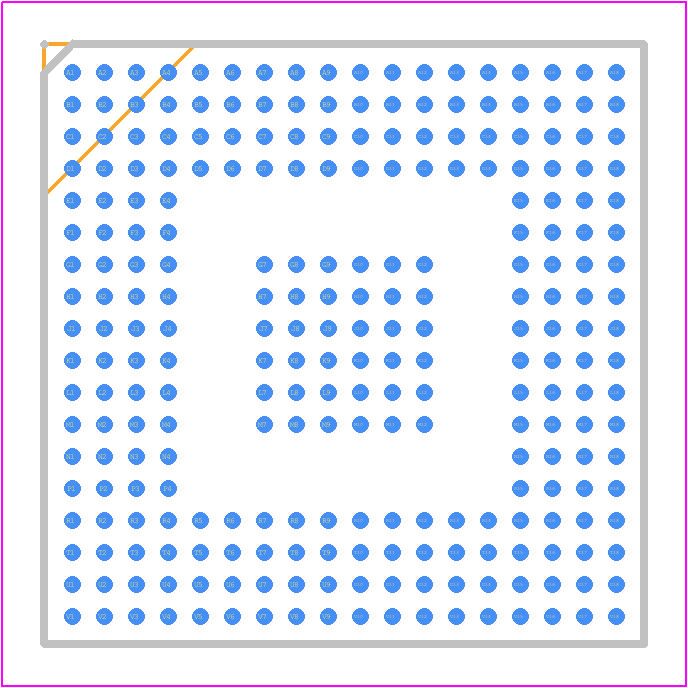

ADV7626KBCZ-8 - Analog Devices PCB footprint - BGA - BGA - 260-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-260-1)
click to zoom
3D Models
ADV7626KBCZ-8 - Analog Devices - 3D model - BGA - 260-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-260-1)
click to zoom

ADV7626KBCZ-8 Details

  • Manufacturer Part Number:

    ADV7626KBCZ-8

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSP-260

  • Pin Count:

    260

  • Manufacturer Package Code:

    BC-260-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B260

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    260

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

ADV7626KBCZ-8 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the HDMI connector, and the HDMI traces should be routed as differential pairs with a 100-ohm impedance.
  • The ADV7626KBCZ-8 can be configured for different HDMI versions (e.g., HDMI 1.4, HDMI 2.0) by setting the appropriate registers through the I2C interface. Refer to the datasheet and the HDMI specification for more information.
  • The ADV7626KBCZ-8 supports cable lengths up to 30 meters at 6 Gbps and 15 meters at 12 Gbps, depending on the cable quality and the HDMI version.
  • Use an oscilloscope to measure the HDMI signal quality, and check for signal attenuation, jitter, and eye diagram closure. Also, verify that the device is properly configured and that the HDMI cable meets the required specifications.
  • No, the ADV7626KBCZ-8 is specifically designed for HDMI applications and is not compatible with other interfaces like DisplayPort, USB, or VGA.
