ADV7842KBCZ-5P - Analog Devices

Description: ADV7842KBCZ-5P HDMI-Schnittstelle 8-Kanal Seriell-I2C 3,2 → 3,4 V 256-Pin CSPBGA

Download ADV7842KBCZ-5P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV7842KBCZ-5P - Analog Devices - PCB symbol
click to zoom
PCB Footprints

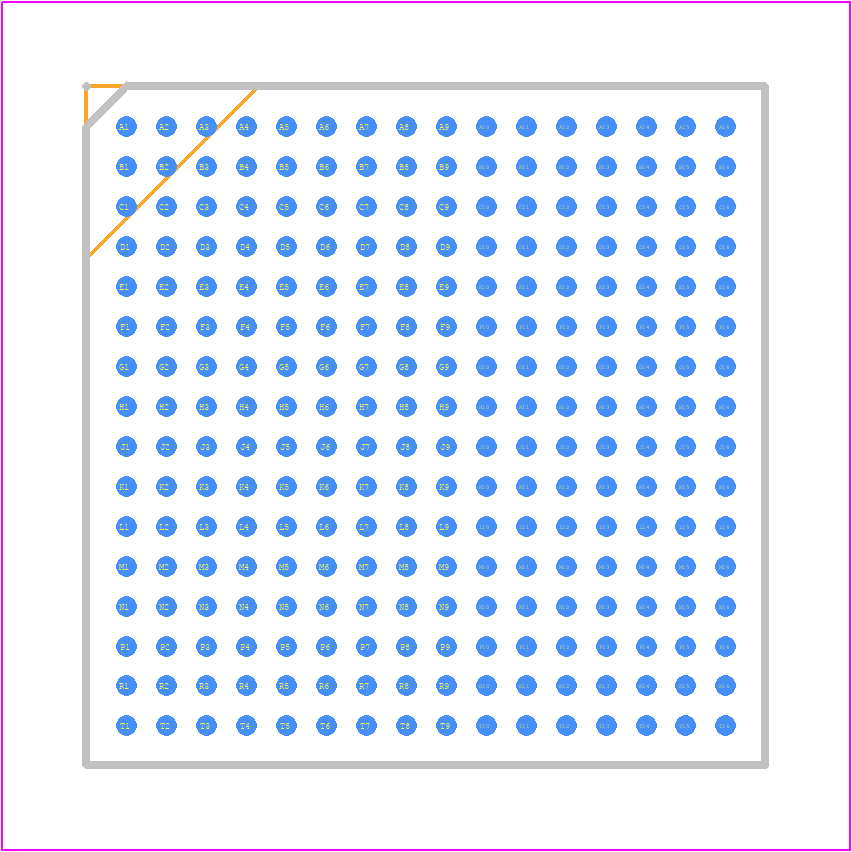

ADV7842KBCZ-5P - Analog Devices PCB footprint - BGA - BGA - BC-256-3
click to zoom
3D Models
ADV7842KBCZ-5P - Analog Devices - 3D model - BGA - BC-256-3
click to zoom

ADV7842KBCZ-5P Details

  • Manufacturer Part Number:

    ADV7842KBCZ-5P

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    17 X 17 MM, ROHS COMPLIANT, MO-192AAF-1, CSPBGA-256

  • Pin Count:

    256

  • Manufacturer Package Code:

    BC-256-3

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO REQUIRES DIGITAL SUPPLY 1.75 TO 1.85V

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B256

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA256,16X16,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

ADV7842KBCZ-5P Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV7842KBCZ-5P involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the high-frequency pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • To optimize the ADV7842KBCZ-5P for a specific video input, you need to adjust the gain and equalization settings. You can use the device's built-in equalization and gain control features to compensate for signal degradation caused by the cable or transmission medium.
  • The maximum cable length supported by the ADV7842KBCZ-5P depends on the type of cable and the signal frequency. As a general rule, the device can support cable lengths of up to 100 meters for SD-SDI, 50 meters for HD-SDI, and 20 meters for 3G-SDI.
  • To troubleshoot issues with the ADV7842KBCZ-5P, start by checking the power supply and clock signals. Verify that the device is properly configured and that the input signals are within the specified range. Use an oscilloscope to check the signal quality and look for signs of signal degradation or distortion.
  • The ADV7842KBCZ-5P is designed to support standard video formats such as SD-SDI, HD-SDI, and 3G-SDI. However, it may be possible to use the device with non-standard video formats by adjusting the clock and data alignment settings. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7842KBCZ-5P Overview

Use the download button to access the ADV7842KBCZ-5P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV78, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
