ADV8005KBCZ-8C - Analog Devices

Description: NatureVue™ Video Signal Processor with Bitmap OSD, Dual HDMI Tx, and Encoder

Download ADV8005KBCZ-8C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV8005KBCZ-8C - Analog Devices - PCB symbol
click to zoom
PCB Footprints

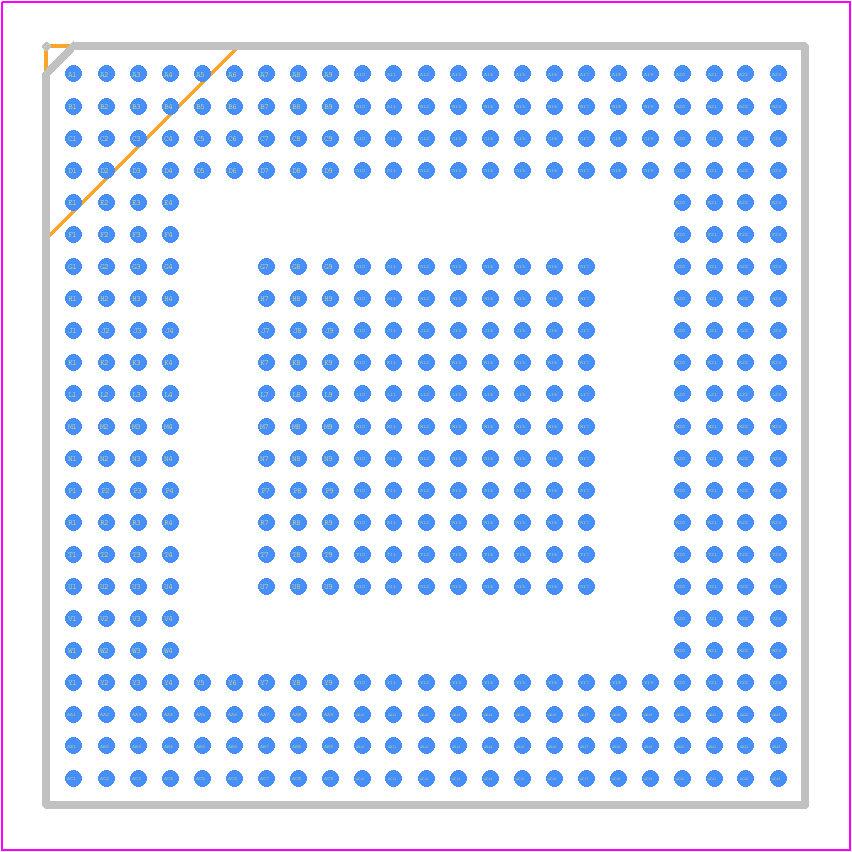

ADV8005KBCZ-8C - Analog Devices PCB footprint - BGA - BGA - CHIP SCALE BGA_2023
click to zoom
3D Models
ADV8005KBCZ-8C - Analog Devices - 3D model - BGA - CHIP SCALE BGA_2023
click to zoom

ADV8005KBCZ-8C Details

  • Manufacturer Part Number:

    ADV8005KBCZ-8C

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-425

  • Pin Count:

    425

  • Manufacturer Package Code:

    BC-425-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B425

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    425

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA425,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    1.854 V

  • Supply Voltage-Min (Vsup):

    1.746 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    19 mm

ADV8005KBCZ-8C Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them over each other. Use a common mode filter or a ferrite bead to reduce EMI.
  • To optimize for low power consumption, use the lowest possible clock frequency, disable unused features, and adjust the bias current to the minimum required for the application. Also, consider using the power-down mode when the device is not in use.
  • A heat sink or a thermal pad is recommended to dissipate heat. Ensure good airflow around the device and avoid blocking the airflow. Consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • Use an oscilloscope to check the clock and data signals. Verify that the input signals are within the specified range and that the device is properly configured. Check for noise and EMI issues, and ensure that the power supply is stable and clean.
  • The ADV8005KBCZ-8C is designed to operate at a specific clock frequency and voltage range. While it may be possible to use it in a system with a different clock frequency or voltage, it is not recommended and may affect the device's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV8005KBCZ-8C Overview

Use the download button to access the ADV8005KBCZ-8C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV80, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
