ADV8005KBCZ-8N - Analog Devices

Description: NatureVue™ Video Signal Processor with Bitmap OSD, Dual HDMI Tx, and Encoder

Download ADV8005KBCZ-8N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV8005KBCZ-8N - Analog Devices - PCB symbol
click to zoom
PCB Footprints

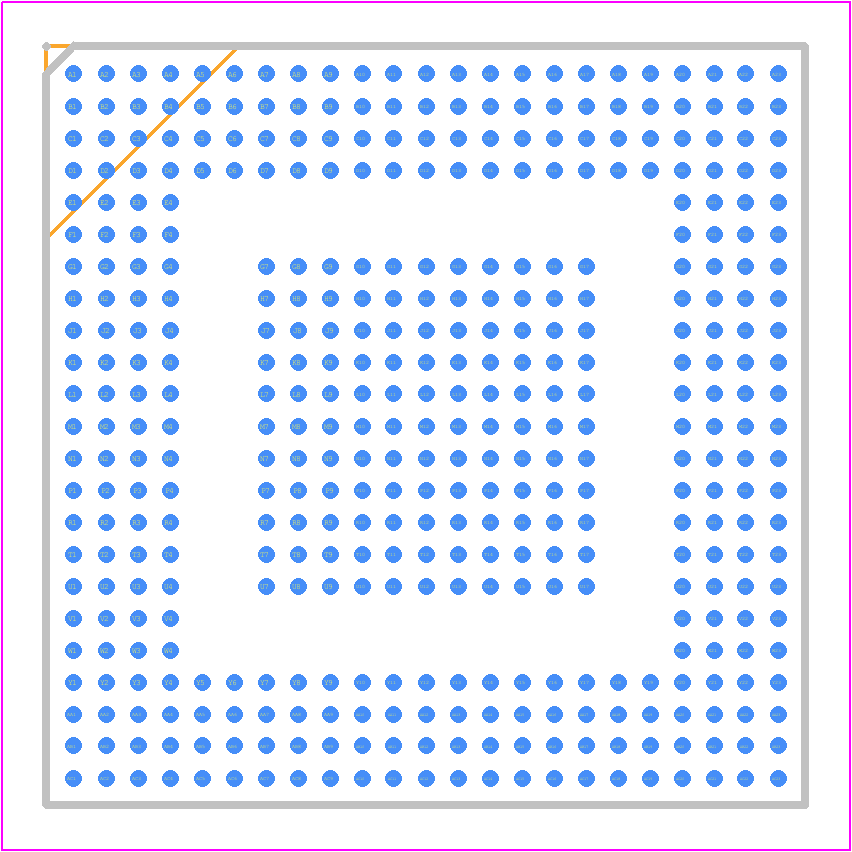

ADV8005KBCZ-8N - Analog Devices PCB footprint - BGA - BGA - CHIP SCALE BGA-1
click to zoom
3D Models
ADV8005KBCZ-8N - Analog Devices - 3D model - BGA - CHIP SCALE BGA-1
click to zoom

ADV8005KBCZ-8N Details

  • Manufacturer Part Number:

    ADV8005KBCZ-8N

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-425

  • Pin Count:

    425

  • Manufacturer Package Code:

    BC-425-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B425

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    425

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA425,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    1.854 V

  • Supply Voltage-Min (Vsup):

    1.746 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    19 mm

ADV8005KBCZ-8N Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them. Use a common mode filter and a ferrite bead to reduce EMI.
  • Use the lowest possible clock frequency, disable unused features, and adjust the bias current to minimize power consumption. Also, consider using a lower voltage supply and optimizing the output load impedance.
  • Use a heat sink with a thermal conductivity of at least 1 W/m-K, and ensure good airflow around the device. Apply a thermal interface material with a thermal conductivity of at least 5 W/m-K between the device and the heat sink.
  • Use an oscilloscope to check the clock and data signals, and verify that the input signals are within the specified range. Check the power supply voltage and ensure that it is within the recommended range. Also, verify that the device is properly configured and that the firmware is up-to-date.
  • Yes, but you may need to modify the device's configuration and firmware to accommodate the different clock frequency or data format. Consult the datasheet and application notes for guidance on how to do this.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV8005KBCZ-8N Overview

Use the download button to access the ADV8005KBCZ-8N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV80, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
