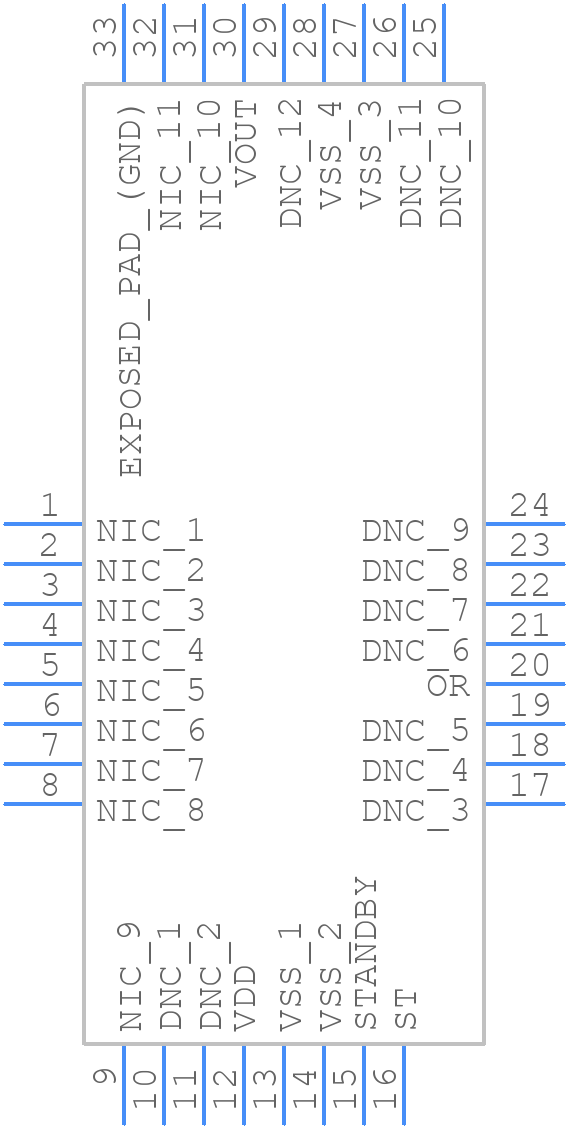

ADXL1001BCPZ - Analog Devices

ADXL1001BCPZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ADXL1001BCPZ?
  A good PCB layout for the ADXL1001BCPZ involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins.
• How do I calibrate the ADXL1001BCPZ?
  Calibration of the ADXL1001BCPZ involves applying known accelerations to the device and measuring the output. The device can be calibrated using a combination of zero-g offset and sensitivity scaling factors.
• What is the maximum acceleration range that the ADXL1001BCPZ can measure?
  The ADXL1001BCPZ can measure accelerations up to ±100 g, but it's recommended to operate within the specified range of ±50 g for optimal performance.
• Can I use the ADXL1001BCPZ in high-temperature applications?
  The ADXL1001BCPZ is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to consult the datasheet and application notes for guidance on high-temperature operation.
• How do I filter out noise and vibrations when using the ADXL1001BCPZ?
  Noise and vibrations can be filtered out using digital filters, such as low-pass filters or band-pass filters, or by using analog filters, such as RC filters or active filters, in the signal conditioning circuitry.
