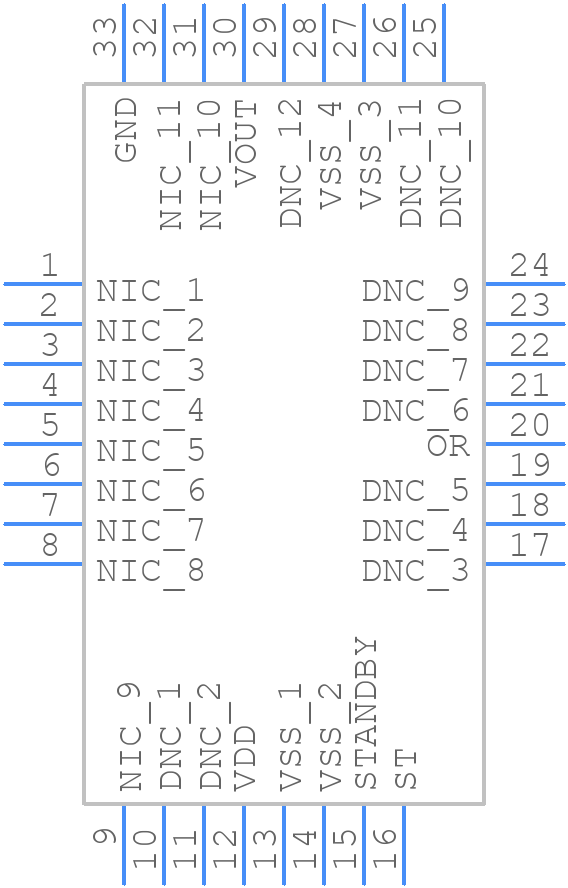

ADXL1002BCPZ-RL - Analog Devices

ADXL1002BCPZ-RL Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ADXL1002BCPZ-RL?
  A good PCB layout for the ADXL1002BCPZ-RL involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
• How do I calibrate the ADXL1002BCPZ-RL?
  The ADXL1002BCPZ-RL does not require calibration. It is a self-contained accelerometer that provides a calibrated output. However, if you need to adjust the sensitivity or offset, you can use the built-in self-test feature or apply an external calibration signal.
• What is the maximum acceleration range of the ADXL1002BCPZ-RL?
  The ADXL1002BCPZ-RL has a maximum acceleration range of ±100 g. However, it's recommended to operate within the specified range of ±50 g to ensure accurate measurements.
• Can I use the ADXL1002BCPZ-RL in high-temperature applications?
  The ADXL1002BCPZ-RL is rated for operation from -40°C to +125°C. However, the device's accuracy and sensitivity may degrade at high temperatures. It's recommended to consult the datasheet and application notes for specific guidance on high-temperature operation.
• How do I filter out noise and vibrations in the ADXL1002BCPZ-RL output?
  You can use digital filters, such as a low-pass filter or a Kalman filter, to remove noise and vibrations from the ADXL1002BCPZ-RL output. You can also use analog filters, such as a RC filter, to filter out high-frequency noise.
