ADXL1003BCPZ-RL - Analog Devices

Description: Low Noise, Wide Bandwidth, MEMS Accelerometer

Download ADXL1003BCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

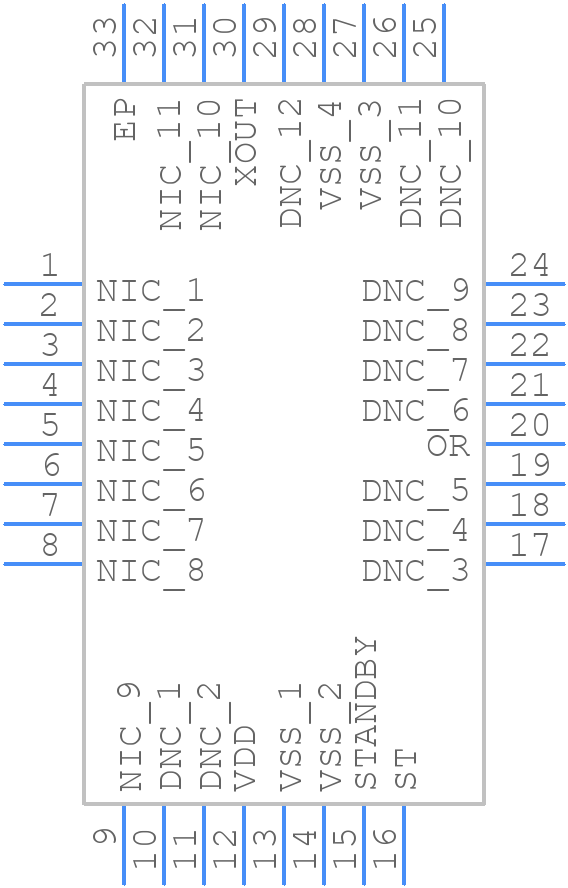

ADXL1003BCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL1003BCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-26
click to zoom
3D Models
ADXL1003BCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-26
click to zoom

ADXL1003BCPZ-RL Details

  • Manufacturer Part Number:

    ADXL1003BCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-26

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC32,.20SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.85 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADXL1003BCPZ-RL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADXL1003BCPZ-RL can be found in the ADXL1003 Evaluation Board documentation, which provides a reference design for optimal performance. It's essential to follow the layout guidelines to minimize noise and ensure accurate measurements.
  • The ADXL1003BCPZ-RL does not require calibration in the classical sense. However, it's recommended to perform a zero-g offset calibration to account for any internal sensor offsets. This can be done by taking measurements with the device at rest and averaging the output values to determine the offset.
  • The ADXL1003BCPZ-RL is a ±100 g accelerometer, but it can measure accelerations beyond its specified range. However, the device's linearity and accuracy may degrade at higher acceleration levels. It's recommended to consult the datasheet and application notes for more information on the device's performance at high accelerations.
  • The ADXL1003BCPZ-RL is specified to operate from -40°C to +125°C, but its performance may degrade at high temperatures. It's essential to consult the datasheet and application notes for more information on the device's temperature characteristics and to ensure that the device meets the requirements of your specific application.
  • The ADXL1003BCPZ-RL outputs a high-pass filtered signal, but additional filtering may be required depending on the application. A low-pass filter can be used to remove high-frequency noise, and a band-pass filter can be used to isolate specific frequency bands of interest. The choice of filter depends on the specific requirements of the application.
