ADXL1003BCPZ-RL7 - Analog Devices

Description: Low Noise, Wide Bandwidth, MEMS Accelerometer

Download ADXL1003BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

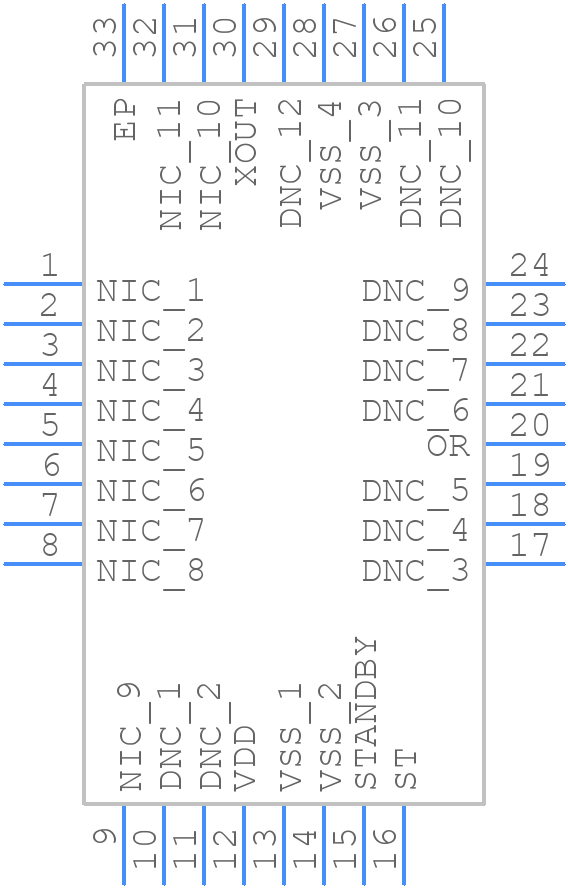

Symbol
ADXL1003BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL1003BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-26
click to zoom
3D Models
ADXL1003BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-26
click to zoom

ADXL1003BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADXL1003BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-26

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC32,.20SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.85 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADXL1003BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL1003BCPZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The ADXL1003BCPZ-RL7 does not require calibration in the classical sense. However, it's recommended to perform a zero-g offset calibration by taking the average of the output readings when the device is at rest, and then subtracting this value from subsequent readings to remove any offset errors.
  • The ADXL1003BCPZ-RL7 can measure accelerations up to ±100 g, but it's recommended to limit the maximum acceleration to ±50 g to ensure accurate measurements and prevent damage to the device.
  • The ADXL1003BCPZ-RL7 has a built-in 50 Hz low-pass filter, but additional filtering may be necessary depending on the application. A digital filter such as a moving average or a low-pass filter can be implemented in software to further reduce noise and vibrations.
  • The POR timing for the ADXL1003BCPZ-RL7 is typically around 10 ms, during which the device is in a reset state. After the POR, the device takes around 1 ms to settle and start producing valid output data.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL1003BCPZ-RL7 Overview

Use the download button to access the ADXL1003BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL1, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
