ADXL1004BCPZ-RL7 - Analog Devices

Description: Accelerometer Single ±500g 5V 4mV/g 32-Pin LFCSP EP T/R

Download ADXL1004BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

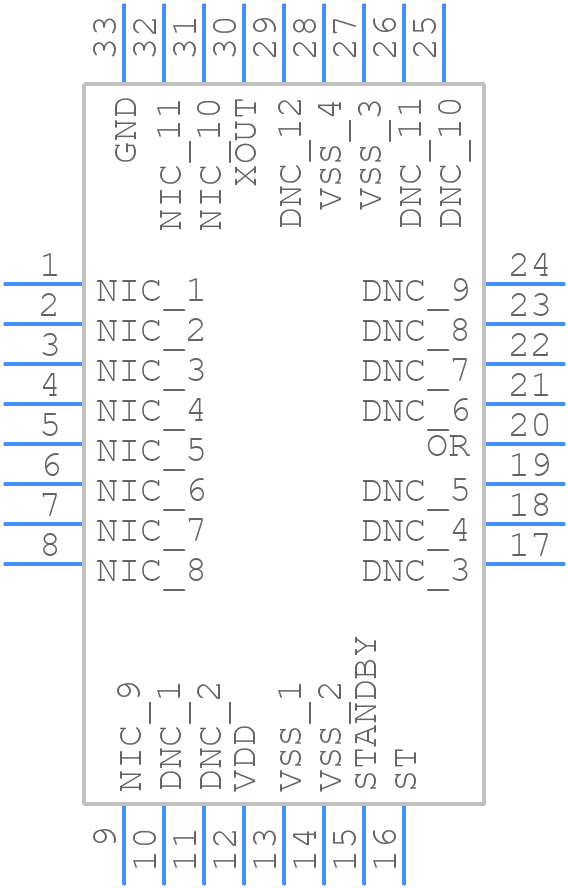

ADXL1004BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL1004BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-26
click to zoom
3D Models
ADXL1004BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-26
click to zoom

ADXL1004BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADXL1004BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-26

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC32,.20SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.85 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADXL1004BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL1004BCPZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The ADXL1004BCPZ-RL7 does not require calibration. It is a self-contained accelerometer that provides a calibrated output. However, if you need to adjust the sensitivity or offset, you can use the built-in self-test feature or apply an external calibration signal.
  • The ADXL1004BCPZ-RL7 can measure accelerations up to ±100 g. However, the maximum acceleration range may be limited by the specific application and the mechanical design of the system.
  • The ADXL1004BCPZ-RL7 is rated for operation from -40°C to +125°C. However, the device's accuracy and sensitivity may degrade at high temperatures. It's recommended to consult the datasheet and application notes for specific guidance on high-temperature operation.
  • You can use digital filters, such as a low-pass filter or a Kalman filter, to filter out noise and vibrations. Additionally, you can use analog filters, such as a RC filter, to filter out high-frequency noise. The choice of filter depends on the specific application and the type of noise present.
