ADXL1005BCPZ - Analog Devices

Description: Accelerometers Low Noise 50kHz +100g 1-axis accel

Download ADXL1005BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

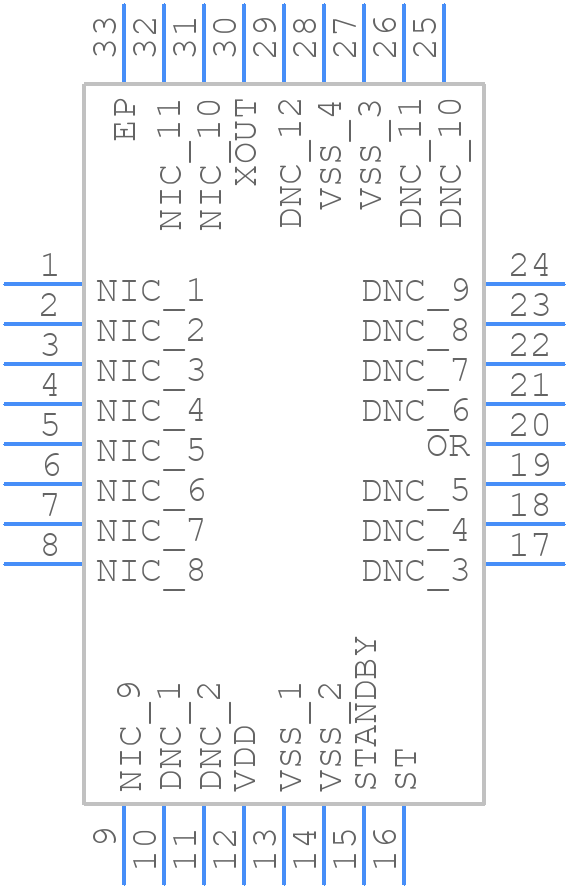

ADXL1005BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL1005BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-26
click to zoom
3D Models
ADXL1005BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-26
click to zoom

ADXL1005BCPZ Details

  • Manufacturer Part Number:

    ADXL1005BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-26

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Date Of Intro:

    2018-04-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC32,.20SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.85 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADXL1005BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL1005BCPZ involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • Calibration of the ADXL1005BCPZ involves applying a known acceleration to the device and measuring the output. The device can be calibrated by applying a 1g acceleration (i.e., placing the device on a flat surface) and adjusting the offset and sensitivity to match the expected output.
  • The ADXL1005BCPZ has a maximum acceleration range of ±100g, but it can be damaged if subjected to accelerations above ±200g. It's recommended to use mechanical stops or other protective measures to prevent excessive acceleration.
  • The ADXL1005BCPZ is rated for operation from -40°C to 125°C, but its accuracy and sensitivity may degrade at high temperatures. It's recommended to use the device within its specified operating temperature range for optimal performance.
  • Noise and vibrations can be filtered out using digital filters such as low-pass filters or notch filters. Analog filters can also be used, but digital filters are more flexible and easier to implement. The choice of filter depends on the specific application and noise characteristics.
