ADXL103CE - Analog Devices

Description: ADXL103CE, Accelerometer, 1600 (xy), 550 (z)Hz 3 to 6V, 8-Pin CLLCC

Download ADXL103CE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

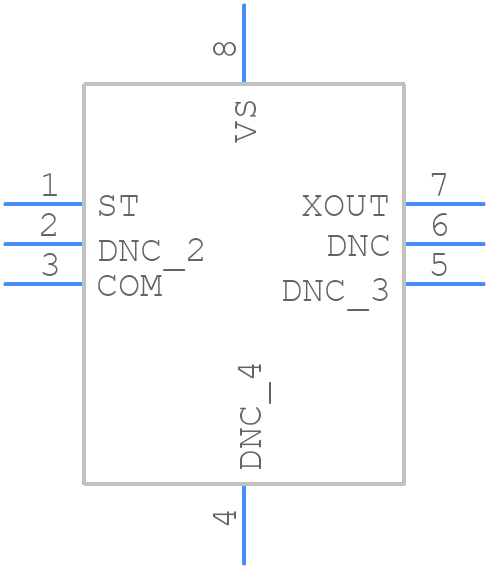

ADXL103CE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL103CE - Analog Devices PCB footprint - Other - Other - LCC127P500X500X220-8N
click to zoom

ADXL103CE Details

  • Manufacturer Part Number:

    ADXL103CE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LCC

  • Package Description:

    LCC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    E-8-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-CQCC-N8

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC8,.2SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.21 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADXL103CE Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL103CE involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the signal traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration of the ADXL103CE involves applying a known acceleration to the device and measuring the output voltage. The sensitivity and offset of the device can be calculated using the measured output voltage and the known acceleration. The device can be calibrated in the factory or in the application.
  • The ADXL103CE is sensitive to temperature changes, which can affect its sensitivity and offset. The device has a temperature coefficient of sensitivity (TCS) of 0.02%/°C and a temperature coefficient of offset (TCO) of 0.5 mg/°C. Temperature compensation may be necessary in some applications.
  • Yes, the ADXL103CE is designed to operate in high-vibration environments. It has a high shock survival rating of 10,000 g and can operate in environments with high vibration levels. However, the device's performance may be affected by extreme vibration levels.
  • The ADXL103CE can be interfaced with a microcontroller using an analog-to-digital converter (ADC). The accelerometer's output voltage is proportional to the acceleration, and the ADC converts the analog voltage to a digital signal that can be read by the microcontroller.
