ADXL150JQC - Analog Devices

Description: 1or 2 axis accelerometer,ADXL150JQC 4-6V

Download ADXL150JQC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

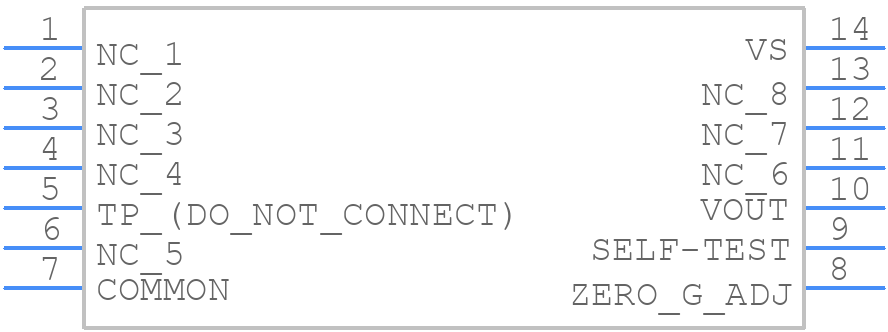

ADXL150JQC - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL150JQC - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead CERPAK (QC-14)
click to zoom
3D Models
ADXL150JQC - Analog Devices - 3D model - Small Outline Packages - 14-Lead CERPAK (QC-14)
click to zoom

ADXL150JQC Details

  • Manufacturer Part Number:

    ADXL150JQC

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    CERPACK-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-CDSO-G14

  • JESD-609 Code:

    e0

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.461 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.315 mm

ADXL150JQC Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL150JQC involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration of the ADXL150JQC involves applying a known acceleration to the device and measuring the output. The device can be calibrated by applying a 1g acceleration (i.e., placing the device on a flat surface) and adjusting the offset and sensitivity values accordingly.
  • The ADXL150JQC has a maximum acceleration range of ±50g. However, the device can be operated at higher acceleration ranges with reduced accuracy and increased noise.
  • The ADXL150JQC is rated for operation up to 125°C. However, the device's accuracy and sensitivity may degrade at high temperatures. It is recommended to consult the datasheet and perform thorough testing before using the device in high-temperature applications.
  • Noise and vibrations can be filtered out using digital filters such as low-pass filters or band-pass filters. Additionally, mechanical filtering techniques such as using a rubber mounting or a vibration isolator can be used to reduce the effects of vibrations.
