ADXL337BCPZ-RL7 - Analog Devices

Description: ADXL337BCPZ-RL7 Analog Devices, 3-Axis Accelerometer, Analogue, 16-Pin LFCSP

Download ADXL337BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

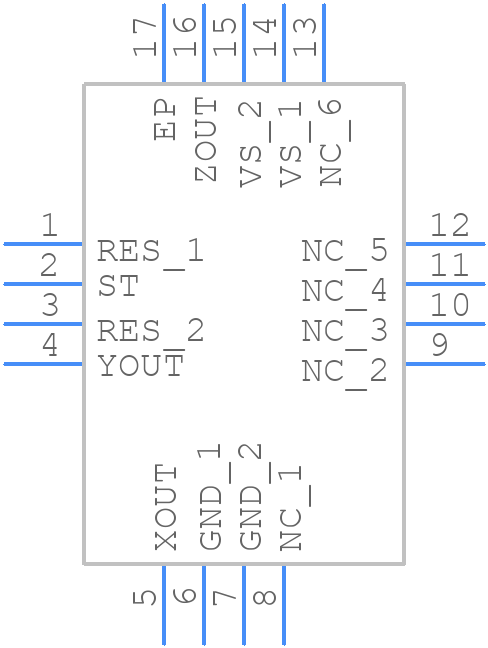

ADXL337BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL337BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3 mm × 3 mm Body
click to zoom
3D Models
ADXL337BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - 3 mm × 3 mm Body
click to zoom

ADXL337BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADXL337BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-28

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Body Breadth:

    3 mm

  • Body Height:

    1.43 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

ADXL337BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL337BCPZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the signal traces to reduce noise and interference.
  • Calibration involves applying a known acceleration to the device and adjusting the output to match the expected value. The ADXL337BCPZ-RL7 has a built-in self-test feature that can be used to calibrate the device. Refer to the datasheet for more information.
  • The ADXL337BCPZ-RL7 can measure accelerations up to ±3.6g, but it's recommended to operate within the specified range of ±3g for optimal performance and accuracy.
  • Noise and vibrations can be filtered out using digital filters such as low-pass filters or band-pass filters. The ADXL337BCPZ-RL7 also has a built-in 50 Hz notch filter to reduce noise from AC power lines.
  • The ADXL337BCPZ-RL7 has a typical current consumption of 180 μA at 3.3 V, making it suitable for battery-powered applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL337BCPZ-RL7 Overview

Use the download button to access the ADXL337BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Sensors/Transducers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
