ADXL344ACCZ-RL - Analog Devices

Description: Accelerometer Triple ±2g/±4g/±8g/±16g 2.6V 16-Pin LGA T/R

Download ADXL344ACCZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

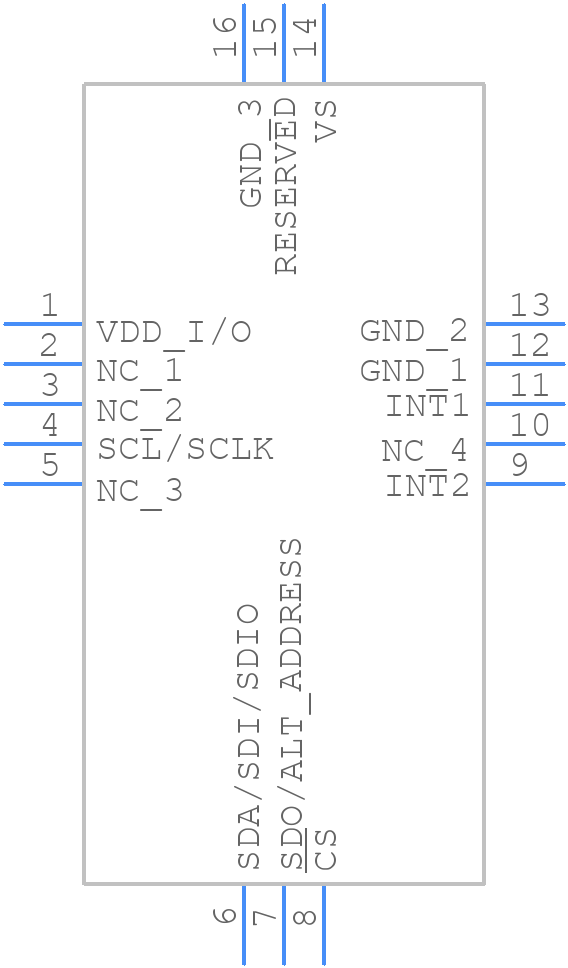

ADXL344ACCZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL344ACCZ-RL - Analog Devices PCB footprint - Other - Other - ADXL344ACCZ-RL-3
click to zoom
3D Models
ADXL344ACCZ-RL - Analog Devices - 3D model - Other - ADXL344ACCZ-RL-3
click to zoom

ADXL344ACCZ-RL Details

  • Manufacturer Part Number:

    ADXL344ACCZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:52.24

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, 0.95 MM HEIGHT, ROHS COMPLIANT, PLASTIC, LGA-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CC-16-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFLGA

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.75 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

ADXL344ACCZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL344ACCZ-RL involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • Calibration of the ADXL344ACCZ-RL involves applying known accelerations to the device and measuring the output. A simple calibration method involves rotating the device through 6 known orientations (±1g, ±2g, and ±3g) and recording the output. The sensitivity and offset can then be calculated using the measured data.
  • The ADXL344ACCZ-RL has a maximum acceleration range of ±16g. However, the device can measure accelerations up to ±32g, but with reduced accuracy.
  • The ADXL344ACCZ-RL is rated for operation up to 125°C. However, the device's accuracy and sensitivity may degrade at high temperatures. It is recommended to characterize the device's performance at the expected operating temperature to ensure it meets the application's requirements.
