ADXL350BCEZ-RL7 - Analog Devices

Description: Accelerometer Triple ±1g/±2g/±4g/±8g 2.5V 16-Pin LGA EP T/R

Download ADXL350BCEZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

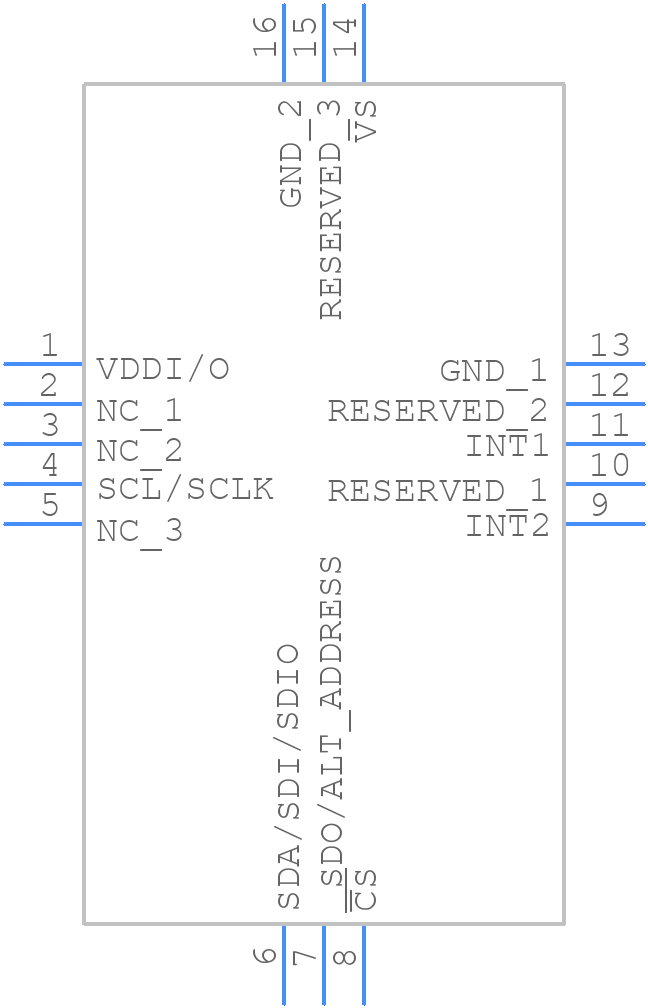

ADXL350BCEZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL350BCEZ-RL7 - Analog Devices PCB footprint - Other - Other - ADXL350BCEZ-RL7-3
click to zoom
3D Models
ADXL350BCEZ-RL7 - Analog Devices - 3D model - Other - ADXL350BCEZ-RL7-3
click to zoom

ADXL350BCEZ-RL7 Details

  • Manufacturer Part Number:

    ADXL350BCEZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA

  • Package Description:

    4 X 3 MM, 1.20 MM HEIGHT, ROHS COMPLIANT, LGA-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CE-16-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B16

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFLGA

  • Package Equivalence Code:

    LCC16,.12X.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADXL350BCEZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL350BCEZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the signal traces to reduce noise and interference.
  • Calibration of the ADXL350BCEZ-RL7 involves applying a known acceleration to the device and measuring the output voltage. The sensitivity and offset can be calculated from these measurements, and used to correct the output data.
  • The ADXL350BCEZ-RL7 can measure accelerations up to ±350g, but it's recommended to limit the acceleration to ±250g for optimal performance and to prevent damage to the device.
  • Noise and vibrations can be filtered out using digital filters such as low-pass filters or band-pass filters, or by using analog filters such as RC filters. The choice of filter depends on the specific application and the frequency range of interest.
  • The ADXL350BCEZ-RL7 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to use the device within its specified operating temperature range for optimal performance.
