ADXL354BEZ-RL7 - Analog Devices

Description: Low-Noise, Low-Drift, Low-Power, 3-Axis MEMS Accelerometers

Download ADXL354BEZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

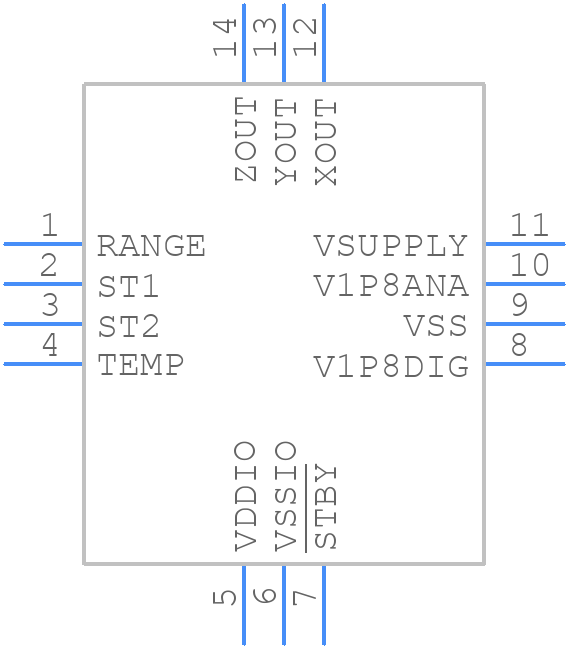

Symbol
ADXL354BEZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL354BEZ-RL7 - Analog Devices PCB footprint - Other - Other - E-14-1_2024-2
click to zoom
3D Models
ADXL354BEZ-RL7 - Analog Devices - 3D model - Other - E-14-1_2024-2
click to zoom

ADXL354BEZ-RL7 Details

  • Manufacturer Part Number:

    ADXL354BEZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    14

  • Manufacturer Package Code:

    E-14-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Date Of Intro:

    2016-09-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e4

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Terminal Finish:

    Gold/Nickel (Au/Ni)

ADXL354BEZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL354BEZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the signal traces to reduce noise and interference.
  • Calibration involves applying a known acceleration to the device and adjusting the output to match the expected value. The ADXL354BEZ-RL7 has a built-in self-test feature that can be used to calibrate the device. Refer to the datasheet for more information.
  • The recommended power-on sequence is to apply VDD first, followed by VIO. This ensures that the internal voltage regulators are powered up correctly and prevents any potential latch-up conditions.
  • The ADXL354BEZ-RL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
  • The ADXL354BEZ-RL7 can measure accelerations up to ±250g, but it's recommended to operate within the specified range of ±50g for optimal performance and accuracy.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL354BEZ-RL7 Overview

Use the download button to access the ADXL354BEZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Sensors/Transducers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
