ADXL357BBEZ-RL7 - Analog Devices

Description: Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometers

Download ADXL357BBEZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

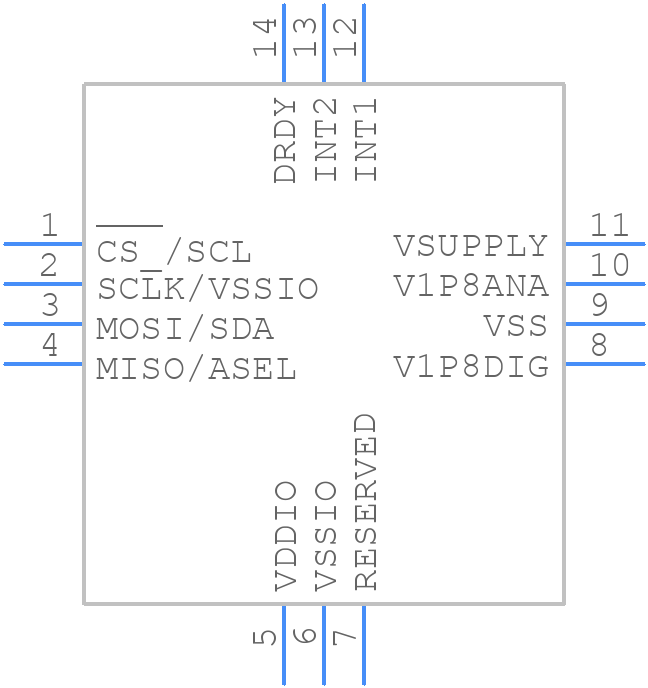

Symbol
ADXL357BBEZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL357BBEZ-RL7 - Analog Devices PCB footprint - Other - Other - ADXL357BBEZ-RL7-1
click to zoom
3D Models
ADXL357BBEZ-RL7 - Analog Devices - 3D model - Other - ADXL357BBEZ-RL7-1
click to zoom

ADXL357BBEZ-RL7 Details

  • Manufacturer Part Number:

    ADXL357BBEZ-RL7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO HAS VOLTAGE OUTPUT 0.50-2.0V

  • Body Height:

    2.05 mm

  • Body Length or Diameter:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    -10-4mA

  • Output Type:

    DIGITAL CURRENT/DIGITAL VOLTAGE

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC14,.2SQ

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Technology:

    MEMS

ADXL357BBEZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL357BBEZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration involves adjusting the sensitivity and offset of the accelerometer to match the specific requirements of your application. This can be done by applying known accelerations to the device and measuring the output, then adjusting the internal registers to achieve the desired response.
  • The ADXL357BBEZ-RL7 can measure accelerations up to ±40 g, but it's recommended to operate within the specified range of ±20 g for optimal performance and accuracy.
  • The ADXL357BBEZ-RL7 can be interfaced with a microcontroller using the SPI or I2C protocol. The device requires a 1.8 V to 3.6 V power supply, and the interface lines should be properly terminated and filtered to minimize noise and ensure reliable communication.
  • The ADXL357BBEZ-RL7 has a typical power consumption of 140 μA in normal mode, and 0.5 μA in standby mode. The power consumption can be further reduced by using the device's low-power modes and adjusting the output data rate.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL357BBEZ-RL7 Overview

Use the download button to access the ADXL357BBEZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Sensors/Transducers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
