ADXL357BBEZ - Analog Devices

Description: Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometers

Download ADXL357BBEZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

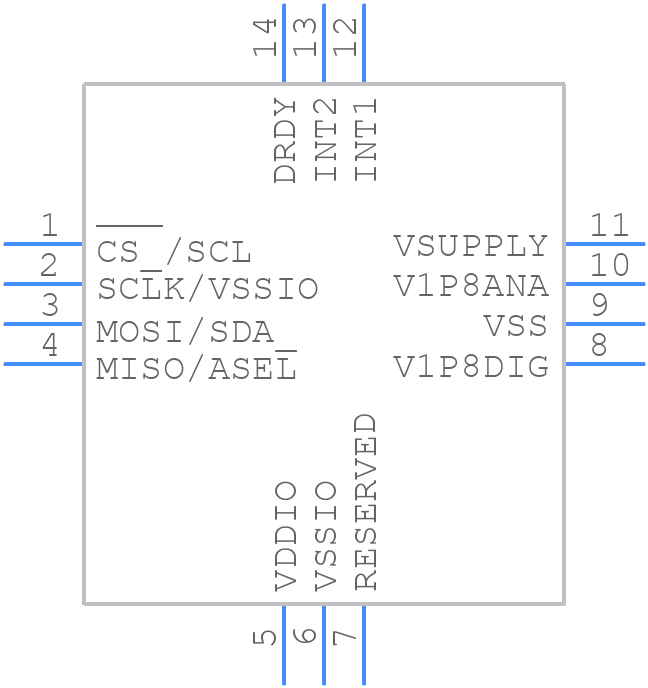

ADXL357BBEZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL357BBEZ - Analog Devices PCB footprint - Other - Other - ADXL357BBEZ-2
click to zoom
3D Models
ADXL357BBEZ - Analog Devices - 3D model - Other - ADXL357BBEZ-2
click to zoom

ADXL357BBEZ Details

  • Manufacturer Part Number:

    ADXL357BBEZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO HAS VOLTAGE OUTPUT 0.50-2.0V

  • Body Height:

    2.05 mm

  • Body Length or Diameter:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    -10-4mA

  • Output Type:

    DIGITAL CURRENT/DIGITAL VOLTAGE

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC14,.2SQ

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Technology:

    MEMS

ADXL357BBEZ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for optimal performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the accelerometer away from high-frequency components and noise sources. A dedicated analog ground plane is also recommended.
  • The ADXL357BBEZ does not require calibration out of the box, but it's recommended to perform a zero-g calibration to remove any offset errors. This can be done by taking measurements at multiple orientations and averaging the results.
  • The ADXL357BBEZ has a maximum acceleration range of ±40 g, but it's recommended to operate within the specified range of ±10 g for optimal performance and accuracy.
  • Noise and interference can be handled by using a low-pass filter, such as a 2-pole Butterworth filter, to remove high-frequency noise. Additionally, using a shielded cable and a good PCB layout can help reduce electromagnetic interference (EMI).
  • The power consumption of the ADXL357BBEZ is typically around 2.5 mA at 3.3 V, but it can vary depending on the operating mode and output data rate.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL357BBEZ Overview

Use the download button to access the ADXL357BBEZ schematic symbol, PCB footprint, and 3D model.
