ADXL358CCCZ-RL7 - Analog Devices

Description: Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometer

Download ADXL358CCCZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

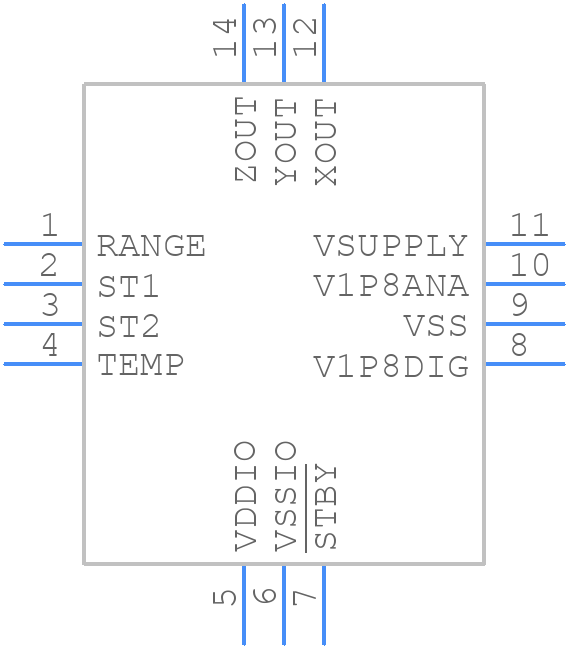

ADXL358CCCZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL358CCCZ-RL7 - Analog Devices PCB footprint - Other - Other - ADXL358CCCZ-RL7-2
click to zoom
3D Models
ADXL358CCCZ-RL7 - Analog Devices - 3D model - Other - ADXL358CCCZ-RL7-2
click to zoom

ADXL358CCCZ-RL7 Details

  • Manufacturer Part Number:

    ADXL358CCCZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA/CASON/CH ARRY SO NO LD

  • Package Description:

    LGA-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    LGA/CASON/CH ARRY SO NO LD

  • Date Of Intro:

    2023-06-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Body Breadth:

    4 mm

  • Body Height:

    0.85 mm

  • Body Length or Diameter:

    4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG OUTPUT

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    MIL-STD-883

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

ADXL358CCCZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL358CCCZ-RL7 involves keeping the accelerometer away from high-frequency components, using a solid ground plane, and minimizing the length of the signal traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration involves adjusting the sensitivity and offset of the accelerometer to match your specific application. This can be done by applying known accelerations to the device and measuring the output. The ADXL358CCCZ-RL7 has a built-in self-test feature that can be used to calibrate the device.
  • The ADXL358CCCZ-RL7 can measure accelerations up to ±10g, but it's recommended to operate within the specified range of ±5g for optimal performance and accuracy.
  • The ADXL358CCCZ-RL7 has a digital SPI interface that can be connected to a microcontroller. The device requires a 1.8V to 3.6V power supply, and the interface signals should be level-shifted to match the microcontroller's voltage level.
  • The ADXL358CCCZ-RL7 has a typical power consumption of 140 μA at 2.5V, but this can vary depending on the sampling rate and other operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL358CCCZ-RL7 Overview

Use the download button to access the ADXL358CCCZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Sensors/Transducers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
