ADXL363BCCZ-RL - Analog Devices

Description: Accelerometer and Temperature Digital Output 2V 16-Pin LGA T/R

Download ADXL363BCCZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

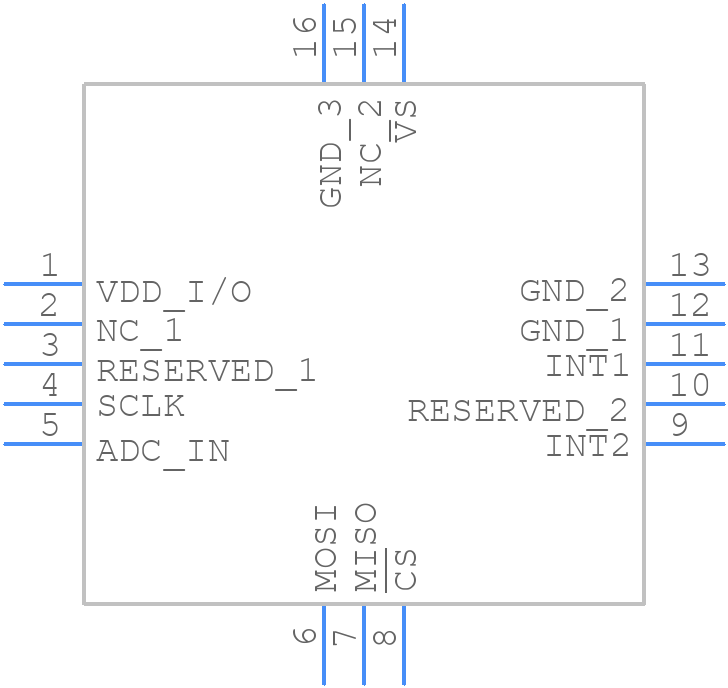

Symbol
ADXL363BCCZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL363BCCZ-RL - Analog Devices PCB footprint - Other - Other - ADXL363BCCZ-RL-1
click to zoom
3D Models
ADXL363BCCZ-RL - Analog Devices - 3D model - Other - ADXL363BCCZ-RL-1
click to zoom

ADXL363BCCZ-RL Details

  • Manufacturer Part Number:

    ADXL363BCCZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CC-16-4

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XBGA-B16

  • JESD-609 Code:

    e4

  • Length:

    3.25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TFLGA

  • Package Equivalence Code:

    LCC20,.12SQ,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.14 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADXL363BCCZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL363BCCZ-RL involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration involves adjusting the sensitivity and offset of the accelerometer to match the specific requirements of your application. This can be done by applying known accelerations to the device and measuring the output, then adjusting the internal registers to achieve the desired response.
  • The ADXL363BCCZ-RL can measure accelerations up to ±40 g, but it's recommended to operate within the specified range of ±10 g for optimal performance and accuracy.
  • The ADXL363BCCZ-RL can be interfaced with a microcontroller using the SPI or I2C protocol. The device requires a 1.8 V to 3.6 V power supply, and the interface lines should be properly terminated and filtered to minimize noise and ensure reliable communication.
  • The ADXL363BCCZ-RL has a typical power consumption of 130 μA in normal mode, and 0.5 μA in standby mode. The power consumption can be further reduced by using the device's low-power modes and adjusting the output data rate.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL363BCCZ-RL Overview

Use the download button to access the ADXL363BCCZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
