ADXL367BCCZ-RL7 - Analog Devices

Description: Nanopower, 3-Axis, ?2 g/?4 g/?8 g Digital Output MEMS Accelerometer

Download ADXL367BCCZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

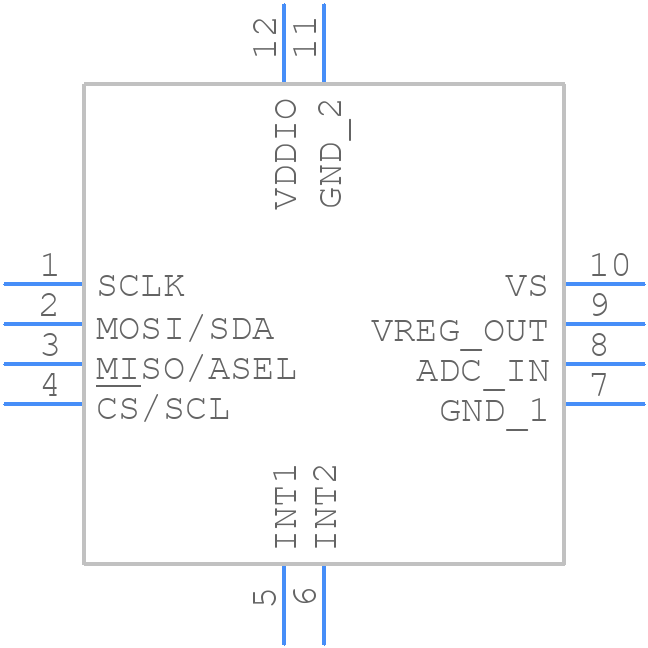

ADXL367BCCZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL367BCCZ-RL7 - Analog Devices PCB footprint - Other - Other - ADXL367BCCZ-RL7-4
click to zoom
3D Models
ADXL367BCCZ-RL7 - Analog Devices - 3D model - Other - ADXL367BCCZ-RL7-4
click to zoom

ADXL367BCCZ-RL7 Details

  • Manufacturer Part Number:

    ADXL367BCCZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    CC-12-4

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e4

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Terminal Finish:

    Gold (Au)

ADXL367BCCZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL367BCCZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The ADXL367BCCZ-RL7 does not require calibration. It is a digital accelerometer that provides calibrated acceleration data in mg units. However, if you need to adjust the sensitivity or offset, you can use the built-in self-test feature or perform a system-level calibration using a known acceleration source.
  • The ADXL367BCCZ-RL7 has a maximum acceleration range of ±200g. However, the device can measure accelerations up to ±400g, but with reduced accuracy.
  • The ADXL367BCCZ-RL7 is specified to operate from -40°C to 125°C. However, the device's accuracy and noise performance may degrade at high temperatures. It's recommended to consult the datasheet and application notes for more information on using the device in high-temperature applications.
  • The ADXL367BCCZ-RL7 has a digital SPI interface that can be easily interfaced with most microcontrollers. You'll need to connect the SCL, SDA, and CS pins to the microcontroller's SPI pins, and use a library or write custom code to communicate with the device.
