ADXL372BCCZ-RL7 - Analog Devices

Description: Micropower, 3-Axis,  ±200 g Digital Output, MEMS

Download ADXL372BCCZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

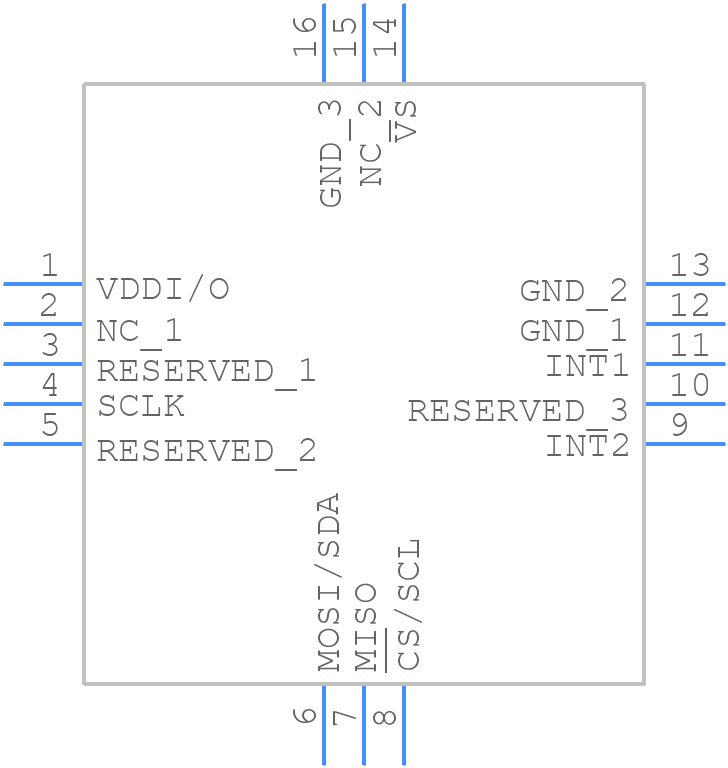

Symbol
ADXL372BCCZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL372BCCZ-RL7 - Analog Devices PCB footprint - Other - Other - ADXL372BCCZ-RL7-8
click to zoom
3D Models
ADXL372BCCZ-RL7 - Analog Devices - 3D model - Other - ADXL372BCCZ-RL7-8
click to zoom

ADXL372BCCZ-RL7 Details

  • Manufacturer Part Number:

    ADXL372BCCZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CC-16-4

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Date Of Intro:

    2017-03-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B16

  • JESD-609 Code:

    e4

  • Length:

    3.25 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFLGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.14 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

ADXL372BCCZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL372BCCZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The ADXL372BCCZ-RL7 does not require calibration in the classical sense. However, it's recommended to perform a zero-g offset calibration by taking the average of the output values when the device is at rest. This can be done during the manufacturing process or during the initial power-up of the device.
  • The ADXL372BCCZ-RL7 can measure accelerations up to ±200 g. However, the device is optimized for measurements up to ±50 g, and the accuracy may degrade at higher acceleration ranges.
  • The ADXL372BCCZ-RL7 is specified to operate from -40°C to 125°C. However, the device's accuracy and sensitivity may degrade at higher temperatures. It's recommended to consult the datasheet and application notes for more information on using the device in high-temperature applications.
  • The ADXL372BCCZ-RL7 has a digital SPI interface that can be easily interfaced with most microcontrollers. The device requires a 3.3 V or 1.8 V power supply, and the SPI interface operates at a maximum clock frequency of 10 MHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL372BCCZ-RL7 Overview

Use the download button to access the ADXL372BCCZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
