ADXL373BCCZ-RL - Analog Devices

Description: Micropower, 3-Axis, ?400 g, Digital Output, MEMS Accelerometer

Download ADXL373BCCZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

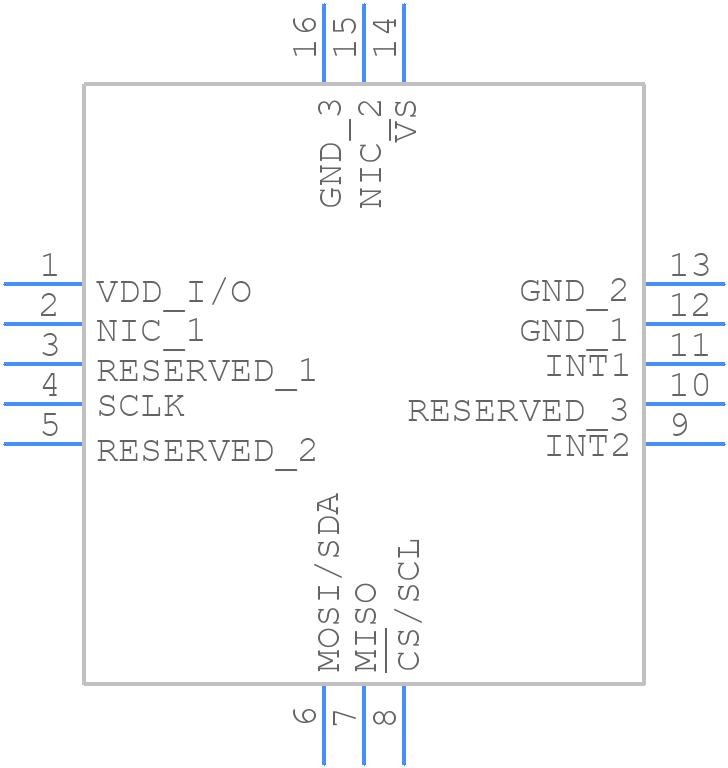

ADXL373BCCZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL373BCCZ-RL - Analog Devices PCB footprint - Other - Other - ADXL373BCCZ-RL
click to zoom
3D Models
ADXL373BCCZ-RL - Analog Devices - 3D model - Other - ADXL373BCCZ-RL
click to zoom

ADXL373BCCZ-RL Details

  • Manufacturer Part Number:

    ADXL373BCCZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    CC-16-4

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Body Breadth:

    3 mm

  • Body Height:

    1.06 mm

  • Body Length or Diameter:

    3.25 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.5-2V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Equivalence Code:

    LCC16,.1X.13,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.5 V

  • Supply Voltage-Min:

    1.6 V

  • Surface Mount:

    YES

ADXL373BCCZ-RL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADXL373BCCZ-RL can be found in the ADXL373 evaluation board documentation, which provides a reference design for optimal performance and noise reduction.
  • Calibration of the ADXL373BCCZ-RL typically involves zero-g offset and sensitivity adjustments. Refer to the ADXL373 datasheet and application notes for guidance on calibration procedures and equations.
  • The ADXL373BCCZ-RL can measure accelerations up to ±200 g, but it's recommended to operate within the specified range of ±70 g for optimal performance and accuracy.
  • The ADXL373BCCZ-RL is rated for operation from -40°C to +125°C, but its accuracy and performance may degrade at extreme temperatures. Consult the datasheet and application notes for temperature-related specifications and considerations.
  • The ADXL373BCCZ-RL communicates via a SPI-compatible digital interface. Refer to the datasheet and application notes for details on interface timing, protocol, and example code for popular microcontrollers.
