ADXL375BCCZ-RL - Analog Devices

Description: Accelerometer Triple ±200g 2.5V/3.3V 14-Pin LGA T/R

Download ADXL375BCCZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

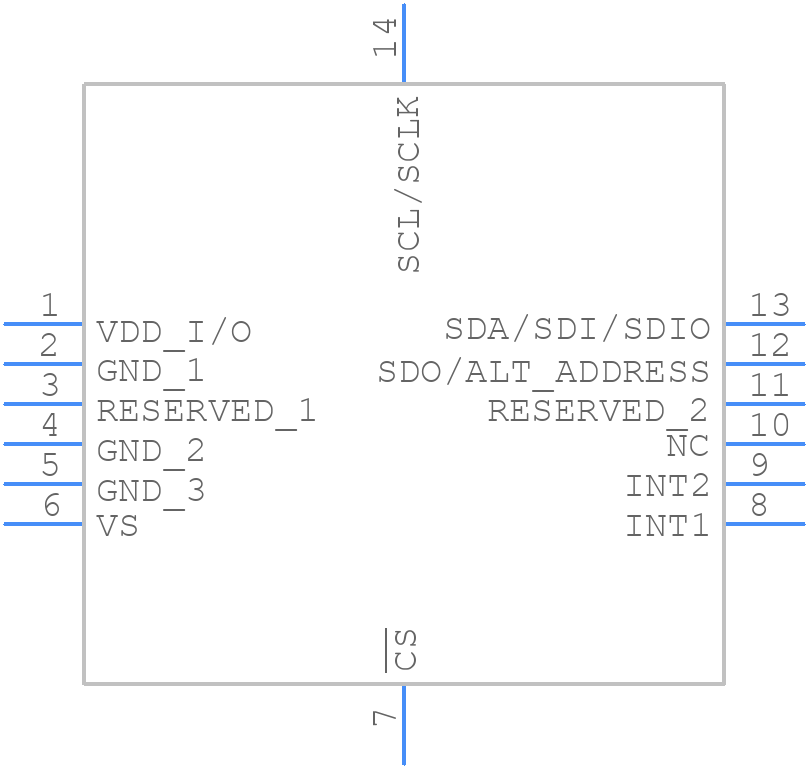

Symbol
ADXL375BCCZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL375BCCZ-RL - Analog Devices PCB footprint - Other - Other - CC-14-1_2022
click to zoom
3D Models
ADXL375BCCZ-RL - Analog Devices - 3D model - Other - CC-14-1_2022
click to zoom

ADXL375BCCZ-RL Details

  • Manufacturer Part Number:

    ADXL375BCCZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 3 MM, 1 MM HEIGHT, ROHS COMPLIANT, LGA-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    CC-14-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XBGA-B14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFLGA

  • Package Equivalence Code:

    LGA14,3X6,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

ADXL375BCCZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL375BCCZ-RL involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • Calibration of the ADXL375BCCZ-RL involves applying known accelerations to the device and measuring the output. A calibration procedure can be implemented using a combination of hardware and software. The device can be calibrated in the factory or in the field using a calibration routine.
  • The ADXL375BCCZ-RL's performance is affected by temperature. The device's sensitivity and offset can vary with temperature. The datasheet provides temperature coefficients for these parameters. It is recommended to temperature-compensate the device's output using an external temperature sensor and calibration data.
  • Yes, the ADXL375BCCZ-RL is designed to operate in high-vibration environments. However, the device's performance may be affected by extreme vibrations. It is recommended to use a mechanical filter or a vibration isolation system to reduce the vibration amplitude and frequency.
  • The ADXL375BCCZ-RL can be interfaced with a microcontroller using a SPI or I2C interface. The device's output can be connected to the microcontroller's analog-to-digital converter (ADC) or digital input pins. The microcontroller can then read the accelerometer's output and perform the necessary processing and calculations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL375BCCZ-RL Overview

Use the download button to access the ADXL375BCCZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
