ADXL380-2BCCZ-RL7 - Analog Devices

Description: Low Noise, Low Power, Wide Bandwidth, 3-Axis MEMS Accelerometer

Download ADXL380-2BCCZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

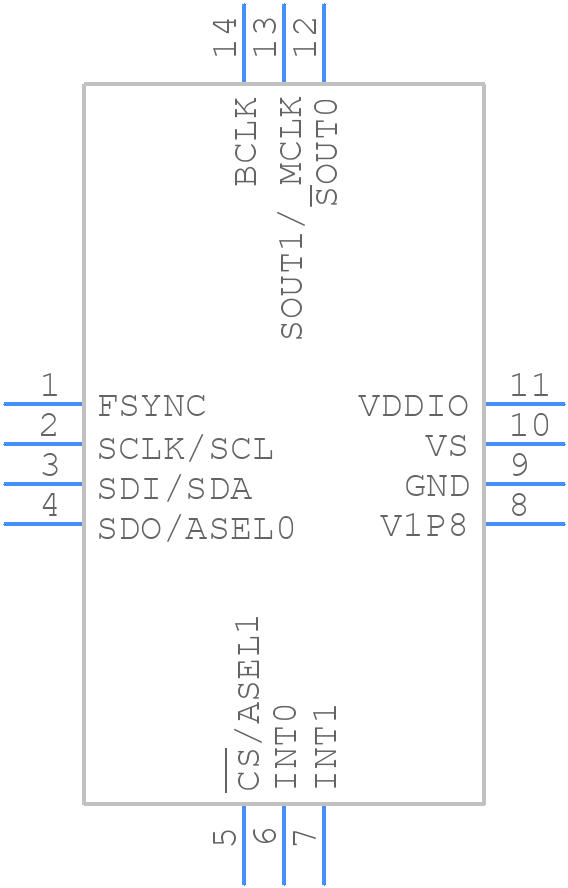

ADXL380-2BCCZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL380-2BCCZ-RL7 - Analog Devices PCB footprint - Other - Other - CC-14-3_2025
click to zoom
3D Models
ADXL380-2BCCZ-RL7 - Analog Devices - 3D model - Other - CC-14-3_2025
click to zoom

ADXL380-2BCCZ-RL7 Details

  • Manufacturer Part Number:

    ADXL380-2BCCZ-RL7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Analog Devices Inc

  • Sensors/Transducers Type:

    ACCELEROMETER

ADXL380-2BCCZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADXL380-2BCCZ-RL7 can be found in the ADXL380 Evaluation Board documentation, which provides a reference design for optimal performance. It's essential to follow the recommended layout to minimize noise and ensure accurate measurements.
  • The ADXL380-2BCCZ-RL7 does not require calibration in the classical sense. However, it's recommended to perform a zero-g offset calibration to account for any internal sensor biases. This can be done by taking measurements at zero-g acceleration and subtracting the resulting values from subsequent measurements.
  • The ADXL380-2BCCZ-RL7 can measure accelerations up to ±380g. However, it's essential to note that the device may saturate or provide inaccurate readings if the acceleration exceeds this range.
  • The ADXL380-2BCCZ-RL7 is rated for operation up to 125°C. However, it's essential to consider the device's temperature coefficient and potential degradation in accuracy at high temperatures. It's recommended to consult the datasheet and application notes for more information.
  • The ADXL380-2BCCZ-RL7 provides a digital SPI interface for communication with a microcontroller. It's essential to follow the datasheet's guidelines for clock frequency, data format, and timing to ensure reliable communication.
