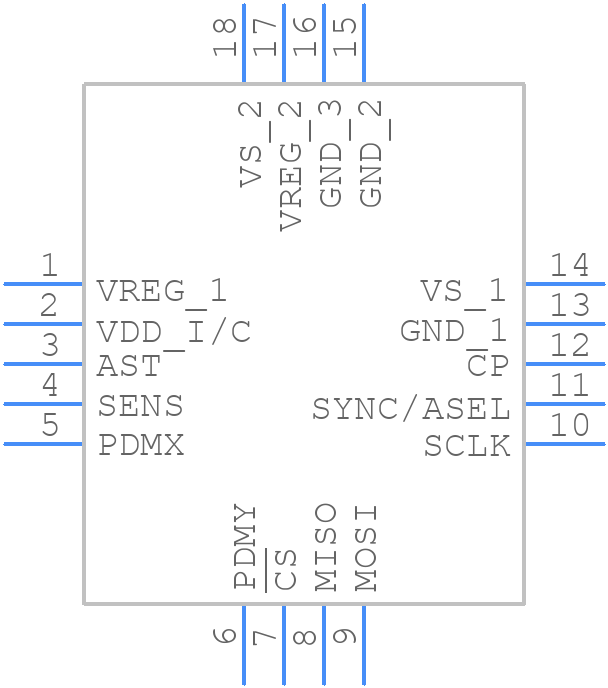

ADXRS290BCEZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXRS290BCEZ - Analog Devices PCB footprint - Other - Other - CE-18-2
click to zoom
3D Models
ADXRS290BCEZ - Analog Devices - 3D model - Other - CE-18-2
click to zoom

ADXRS290BCEZ Details

  • Manufacturer Part Number:

    ADXRS290BCEZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    CE-18-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    7A994

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XBGA-B18

  • Length:

    5.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LFLGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.5 mm
