ADXRS620WBBGZA footprint, schematic symbol and 3D model by Analog Devices

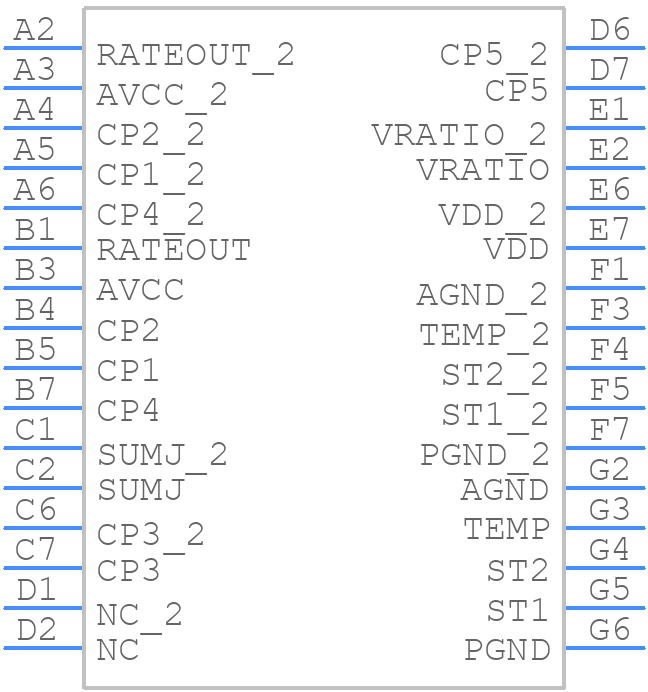

Symbol

click to zoom

PCB Footprints

ADXRS620WBBGZA - Analog Devices PCB footprint - Other - Other - BGA32C80P7X7_685X685X380

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADXRS620WBBGZA
Part Number ADXRS620WBBGZA
Manufacturer Analog Devices
Pin Count 32
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BGA32C80P7X7_685X685X380
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

ADXRS620WBBGZA Details

Manufacturer Part Number:
ADXRS620WBBGZA
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
BGA
Package Description:
BGA-32
Pin Count:
32
Manufacturer Package Code:
BG-32-3
ECCN Code:
7A994
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
S-CBGA-B32
Length:
6.85 mm
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
FBGA
Package Equivalence Code:
BGA32,7X7,32
Package Shape:
SQUARE
Package Style:
GRID ARRAY, FINE PITCH
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Qualification Status:
Not Qualified
Seated Height-Max:
3.8 mm
Supply Voltage-Max (Vsup):
5.25 V
Supply Voltage-Min (Vsup):
4.75 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIMOS
Temperature Grade:
MILITARY
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
6.85 mm

ADXRS620WBBGZA Frequently Asked Questions (FAQs)

A good PCB layout is crucial for optimal performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and keeping the gyroscope away from high-frequency components and noise sources. A dedicated analog ground plane is also recommended.
Calibration involves adjusting the zero-rate output and sensitivity of the gyroscope. This can be done by rotating the device through a known angle and measuring the output, then adjusting the offset and gain registers accordingly. Analog Devices provides a calibration guide in the application note AN-615.
The ADXRS620WBBGZA has a temperature range of -40°C to +125°C. Over this range, the gyroscope's sensitivity and offset may vary. Analog Devices provides temperature coefficients for these variations in the datasheet, allowing designers to compensate for temperature effects in their application.
The ADXRS620WBBGZA has a built-in low-pass filter, but additional filtering may be necessary to reduce noise. Analog Devices recommends using a digital filter, such as a Kalman filter or a low-pass filter, to reduce noise and improve signal quality.
Proper power supply decoupling is essential to reduce noise and ensure optimal performance. Analog Devices recommends using a 10 μF capacitor in parallel with a 100 nF capacitor, placed as close as possible to the gyroscope's power pins.
