ADXRS649BBGZ - Analog Devices

Description: Gyroscope Z (Yaw) ±20000 2kHz Analog Voltage 32-CBGA (6.85x6.85)

Download ADXRS649BBGZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

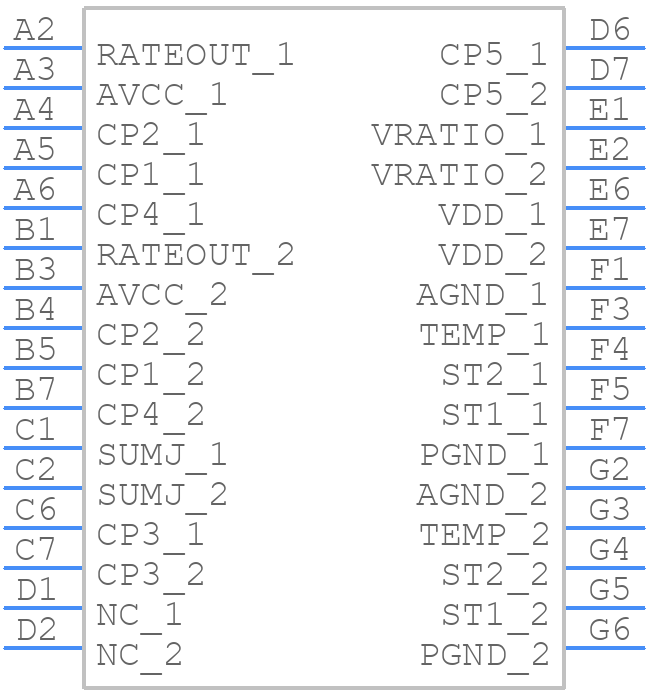

ADXRS649BBGZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXRS649BBGZ - Analog Devices PCB footprint - BGA - BGA - BG-32-3
click to zoom
3D Models
ADXRS649BBGZ - Analog Devices - 3D model - BGA - BG-32-3
click to zoom

ADXRS649BBGZ Details

  • Manufacturer Part Number:

    ADXRS649BBGZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    BG-32-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    7A994

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-CBGA-B32

  • JESD-609 Code:

    e3

  • Length:

    6.85 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA32,7X7,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.85 mm

ADXRS649BBGZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout and placement for the ADXRS649BBGZ involves keeping the device away from high-current carrying traces, avoiding vias under the device, and using a solid ground plane to reduce noise. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADXRS649BBGZ does not require calibration in the classical sense. However, it's recommended to perform a zero-rate offset calibration to account for any bias in the sensor. This can be done by taking the average of multiple readings at zero angular rate.
  • The ADXRS649BBGZ can measure angular rates up to ±300°/s. However, the device can be operated at higher angular rates, but with reduced accuracy and increased noise.
  • The ADXRS649BBGZ can be interfaced with a microcontroller using a SPI or I²C interface. The device requires a 3.3V power supply and a clock signal. The microcontroller should be configured to communicate with the device at a clock frequency of up to 3.4 MHz for SPI or 400 kHz for I²C.
  • The ADXRS649BBGZ has a typical current consumption of 6.5 mA at 3.3V. The power consumption can be reduced by using the device's low-power mode, which reduces the current consumption to 1.5 mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXRS649BBGZ Overview

Use the download button to access the ADXRS649BBGZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXRS, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
