ADXRS652BBGZ-RL footprint, schematic symbol and 3D model by Analog Devices

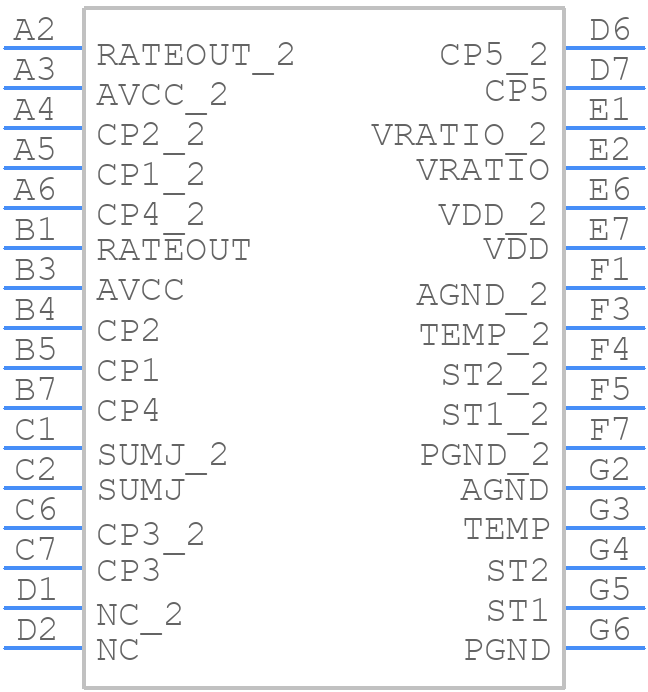

Symbol

click to zoom

PCB Footprints

ADXRS652BBGZ-RL - Analog Devices PCB footprint - Other - Other - BGA32C80P7X7_685X685X380

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADXRS652BBGZ-RL
Part Number ADXRS652BBGZ-RL
Manufacturer Analog Devices
Pin Count 32
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BGA32C80P7X7_685X685X380
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

ADXRS652BBGZ-RL Details

Manufacturer Part Number:
ADXRS652BBGZ-RL
Source Url Status Check Date:
2013-05-01 14:56:52.442
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
BGA
Package Description:
7 X 7 MM, 3 MM HEIGHT, ROHS COMPLIANT, CERAMIC, BGA-32
Pin Count:
32
Manufacturer Package Code:
BG-32-3
Country Of Origin:
Philippines
ECCN Code:
7A994
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
S-CBGA-B32
Length:
6.85 mm
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
FBGA
Package Equivalence Code:
BGA32,7X7,32
Package Shape:
SQUARE
Package Style:
GRID ARRAY, FINE PITCH
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Qualification Status:
Not Qualified
Seated Height-Max:
3.8 mm
Supply Voltage-Max (Vsup):
5.25 V
Supply Voltage-Min (Vsup):
4.75 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
6.85 mm

ADXRS652BBGZ-RL Frequently Asked Questions (FAQs)

A good PCB layout is crucial for optimal performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and keeping the sensitive analog signals away from the digital signals. A dedicated analog ground plane is also recommended. Refer to the application note AN-0971 for more details.
The ADXRS652BBGZ-RL does not require calibration in the classical sense. However, it's recommended to perform a null offset calibration to remove any bias errors. This can be done by taking multiple readings with the device at rest and averaging them to determine the null offset. This value can then be subtracted from subsequent readings to improve accuracy.
The ADXRS652BBGZ-RL is rated for operation from -40°C to +125°C. However, it's recommended to operate the device within the -20°C to +85°C range for optimal performance and accuracy.
The ADXRS652BBGZ-RL outputs 16-bit digital data in twos complement format. The data should be read in the correct byte order (MSB first) and scaled according to the sensitivity setting. The datasheet provides more information on the digital output format and scaling.
The POR timing is approximately 10 ms. During this time, the device is in a reset state and the digital output is invalid. It's recommended to wait for at least 10 ms after power-up before taking any readings.
