ADXRS810WBRGZ-RL - Analog Devices

Description: Gyroscopes SPI output gyro vert pkg +/- 300

Download ADXRS810WBRGZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

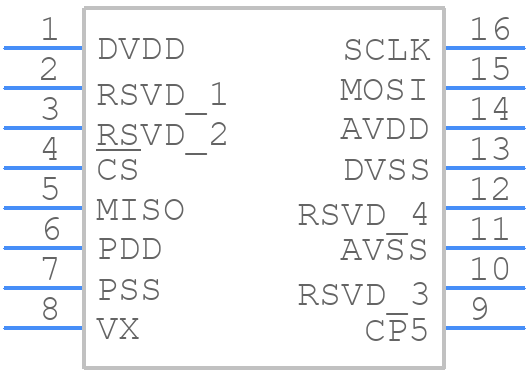

Symbol
ADXRS810WBRGZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXRS810WBRGZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADXRS810WBRGZ-RL
click to zoom
3D Models
ADXRS810WBRGZ-RL - Analog Devices - 3D model - Small Outline Packages - ADXRS810WBRGZ-RL
click to zoom

ADXRS810WBRGZ-RL Details

  • Manufacturer Part Number:

    ADXRS810WBRGZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:52.454

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    3.73 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.8 mm

ADXRS810WBRGZ-RL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and land pattern in the ADXRS810WBRGZ-RL evaluation board documentation, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize noise.
  • Calibration involves adjusting the zero-rate offset and sensitivity scale factor. Analog Devices provides a calibration procedure in the ADXRS810WBRGZ-RL datasheet, which involves applying a known rotation rate and measuring the output. The calibration process can be automated using a microcontroller or performed manually.
  • The recommended power-up sequence is to apply VDD (3.3V) first, followed by VIO (1.8V or 3.3V). This ensures that the internal voltage regulators are powered up correctly. It's essential to follow this sequence to prevent damage to the device.
  • The HPF and LPF settings can be adjusted using the FILT_SEL pin. The HPF helps remove bias and offset, while the LPF reduces noise. The optimal filter settings depend on the application and noise environment. Analog Devices provides guidance on filter selection in the ADXRS810WBRGZ-RL datasheet.
  • The ADXRS810WBRGZ-RL can measure rotation rates up to ±300°/s. However, the maximum measurable rate may be limited by the output data rate and the application's requirements. It's essential to consider the trade-off between measurement range and noise performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXRS810WBRGZ-RL Overview

Use the download button to access the ADXRS810WBRGZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXRS, or try a keyword search, such as Other Signal Circuits
