AE15-EW-S12 - CUI Inc.

AE15-EW-S12 Details

• Manufacturer Part Number:

  AE15-EW-S12

• Brand Name:

  CUI Inc

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• Date Of Intro:

  2018-06-13

• Manufacturer:

  CUI Inc

• YTEOL:

  0

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  EN, IEC

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  77%

• Input Voltage-Max:

  1000 V

• Input Voltage-Min:

  100 V

• Input Voltage-Nom:

  200 V

• JESD-30 Code:

  R-PDMA-P5

• Length:

  70 mm

• Line Regulation-Max:

  1%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  1

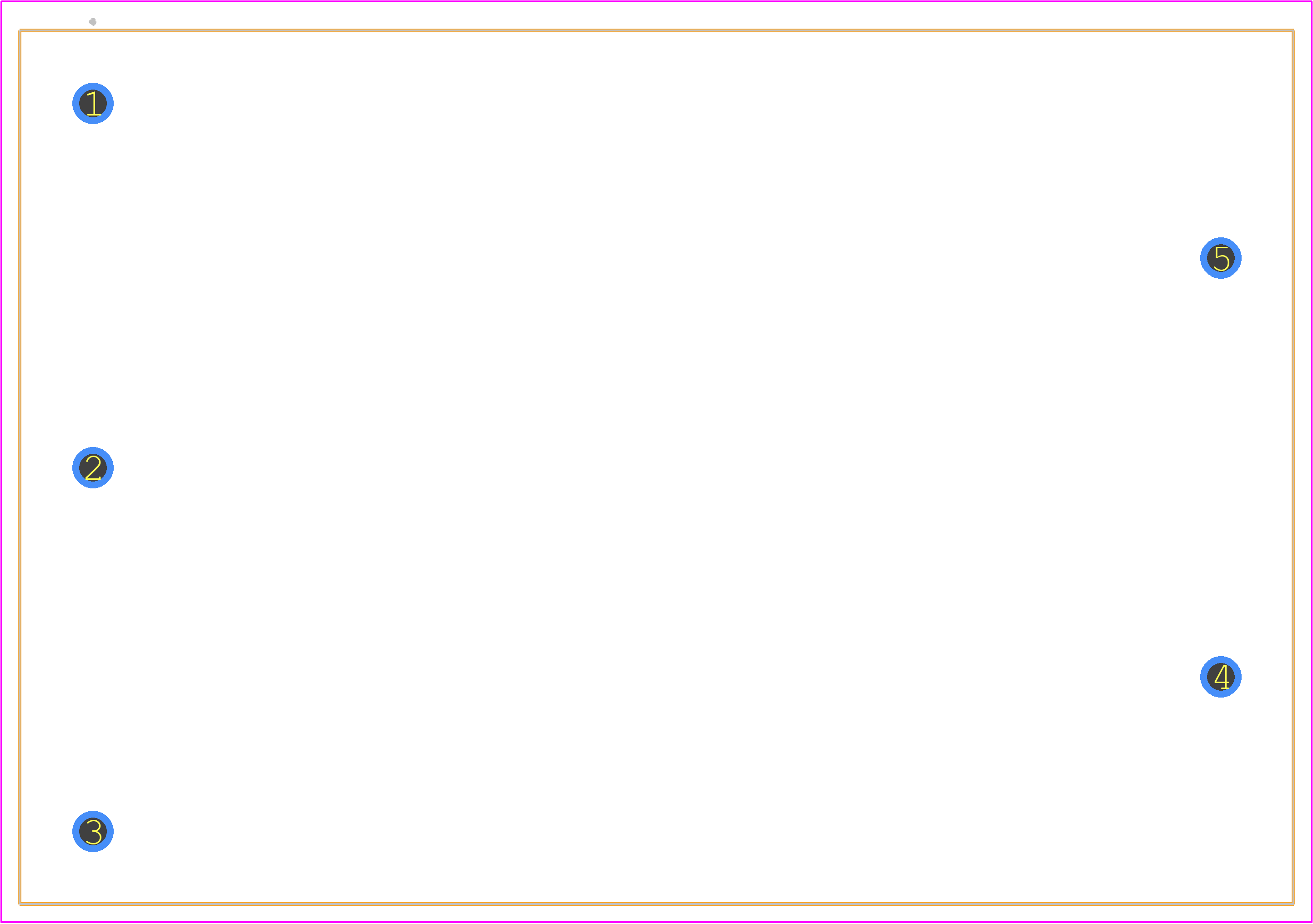

• Number of Terminals:

  5

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.25 A

• Output Voltage-Max:

  12.24 V

• Output Voltage-Min:

  11.76 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER CURRENT; OVER VOLTAGE; SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.0707 Vrms

• Seated Height-Max:

  24 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  75 kHz

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  15 W

• Trim/Adjustable Output:

  NO

• Width:

  48 mm
