AE15-UW-S12 - CUI Inc.

AE15-UW-S12 Details

• Manufacturer Part Number:

  AE15-UW-S12

• Brand Name:

  CUI Inc

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• Manufacturer:

  CUI Inc

• YTEOL:

  0

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CSA, IEC, EN, CE

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  71%

• Input Voltage-Max:

  1500 V

• Input Voltage-Min:

  200 V

• Input Voltage-Nom:

  800 V

• JESD-30 Code:

  R-XDFM-P5

• Length:

  125 mm

• Number of Functions:

  1

• Number of Outputs:

  1

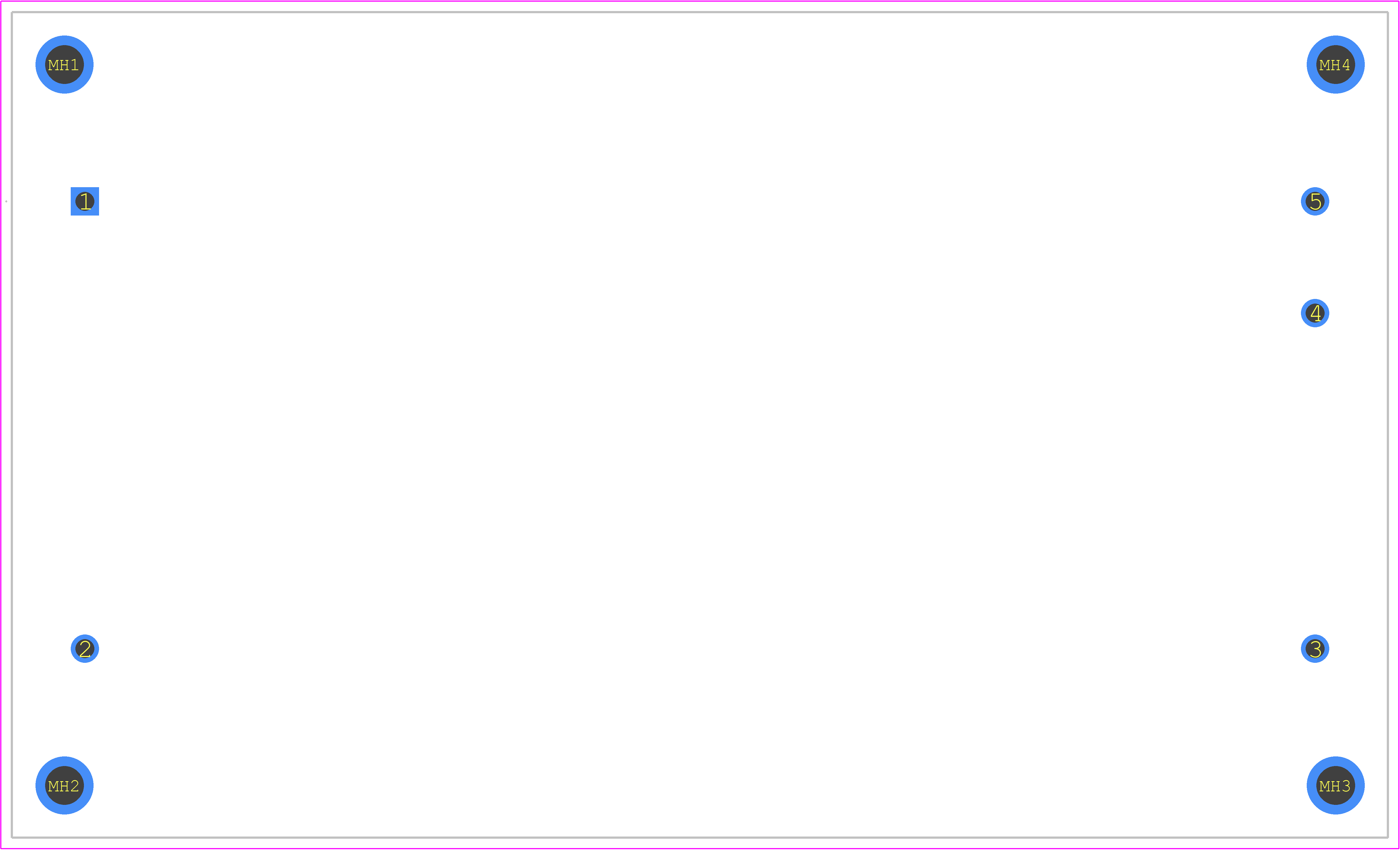

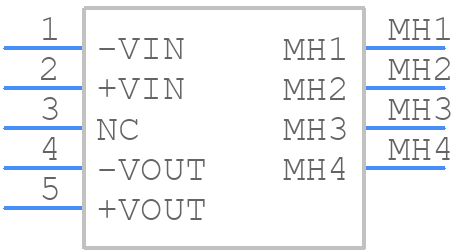

• Number of Terminals:

  5

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.25 A

• Output Voltage-Max:

  12.24 V

• Output Voltage-Min:

  11.76 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DFM

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.10605 Vrms

• Seated Height-Max:

  40.5 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  65 kHz

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  15 W

• Trim/Adjustable Output:

  NO

• Width:

  75 mm
