Please enter a minimum 3 letters or numbers
Technical Content
Part Image

AEA1010221M035R - Kyocera AVX

Description: Aluminum Electrolytic Capacitors - SMD 35V 220uF 1010 5K Hours 20%

Download AEA1010221M035R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AEA1010221M035R - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

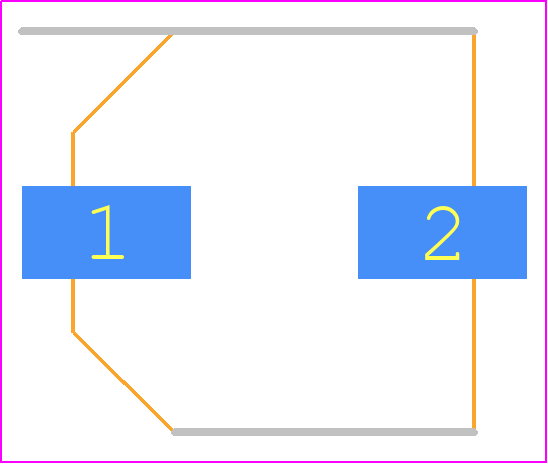

AEA1010221M035R - Kyocera AVX PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - AEA1010221M035R
click to zoom
3D Models
AEA1010221M035R - Kyocera AVX - 3D model - Capacitor Al Electrolytic - AEA1010221M035R
click to zoom

AEA1010221M035R Details

  • Manufacturer Part Number:

    AEA1010221M035R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    10 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.077 mA

  • Length:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    510 mA

  • Size Code:

    4141

  • Surface Mount:

    YES

  • Tan Delta:

    0.14

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    10.3 mm

AEA1010221M035R Frequently Asked Questions (FAQs)

  • The recommended land pattern for AEA1010221M035R can be found in the Kyocera AVX Components' recommended land pattern document, which provides detailed information on the pad layout and dimensions for optimal assembly and reliability.
  • To prevent damage, handle the AEA1010221M035R component by the edges, avoid touching the component's electrical contacts, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • The maximum operating temperature range for AEA1010221M035R is -55°C to +125°C, as specified in the datasheet. However, it's essential to note that the component's performance and reliability may degrade if operated at extreme temperatures for extended periods.
  • Yes, AEA1010221M035R is designed to withstand moderate vibration environments. However, it's crucial to ensure that the component is properly secured to the PCB and that the PCB is designed to withstand the vibration levels expected in the application.
  • To maintain the shelf life of AEA1010221M035R components, store them in their original packaging, away from direct sunlight, moisture, and extreme temperatures. It's also recommended to follow the storage guidelines outlined in the datasheet or provided by Kyocera AVX Components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AEA1010221M035R Overview

Use the download button to access the AEA1010221M035R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AEA10, or try a keyword search, such as Aluminum Electrolytic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.

Parts related to AEA1010221M035R

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

AEA1010221M035R Alternates

Showing results

Image Part Number Model
Part Image UWD1V221MCQ6GS Nichicon Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 4141
Part Image VZL221M1VTR-1010 Lelon Electronics Corp

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 4141
Part Image CM1V227M10010VR Samwha Electronics

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 4141
Part Image RAVTZ221M1GFH0002SU TAIYO YUDEN

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 4141
Part Image RVZ-35V221MH10EUQ-R2 TAIYO YUDEN

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 4141
For a full list of alternate parts for AEA1010221M035R, check out Findchips.com
