AEE01B18-LS - Advanced Energy

Description: Artesyn Embedded Technologies 15W Isolated DC-DC Converter, Vin 9 → 36 V dc, Vout 12 V@ 1.25 A

Download AEE01B18-LS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AEE01B18-LS - Advanced Energy - PCB symbol
click to zoom

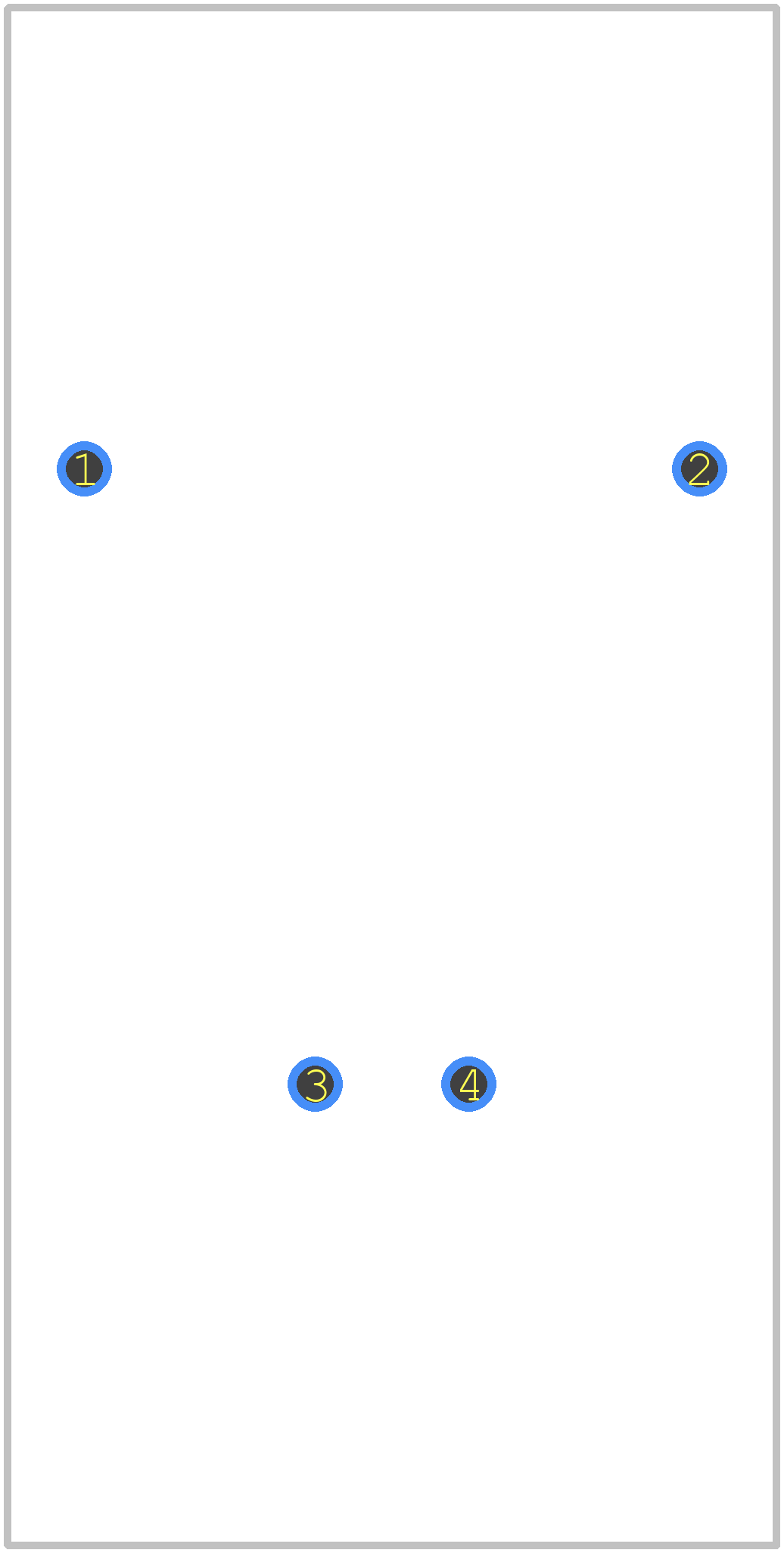

PCB Footprints
AEE01B18-LS - Advanced Energy PCB footprint - Other - Other - AEE01C18-LS
click to zoom
3D Models
AEE01B18-LS - Advanced Energy - 3D model - Other - AEE01C18-LS
click to zoom

AEE01B18-LS Details

  • Manufacturer Part Number:

    AEE01B18-LS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-4

  • Country Of Origin:

    Hong Kong SAR

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Advanced Energy Industries Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, CE

  • Efficiency (Main Output):

    84%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P4

  • Length:

    50.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    71 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.25 A

  • Output Voltage-Max:

    12.24 V

  • Output Voltage-Min:

    11.76 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    SHORT CIRCUIT

  • Screening Level:

    UL 62368-1

  • Seated Height-Max:

    11.3 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

AEE01B18-LS Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves placing the device on a multi-layer board with a solid ground plane, using thermal vias to dissipate heat, and keeping the input and output traces separate. A thermal pad on the bottom of the device should be connected to a heat sink or a thermal interface material to ensure efficient heat dissipation.
  • To ensure proper biasing, the device requires a stable input voltage, and the output voltage should be set to the desired level using an external resistor divider network. The recommended biasing scheme is typically provided in the application notes or evaluation board documentation.
  • The recommended input and output capacitors are typically low-ESR ceramic capacitors with a value of 10uF to 22uF. The specific capacitor values and types may vary depending on the application and operating frequency.
  • To protect the device from overvoltage and overcurrent conditions, it is recommended to use external overvoltage protection (OVP) and overcurrent protection (OCP) circuits. These circuits can be implemented using zener diodes, TVS diodes, and current sense resistors.
  • The recommended operating temperature range for the AEE01B18-LS is typically -40°C to +125°C. However, the device may be able to operate outside this range with reduced performance and reliability.
