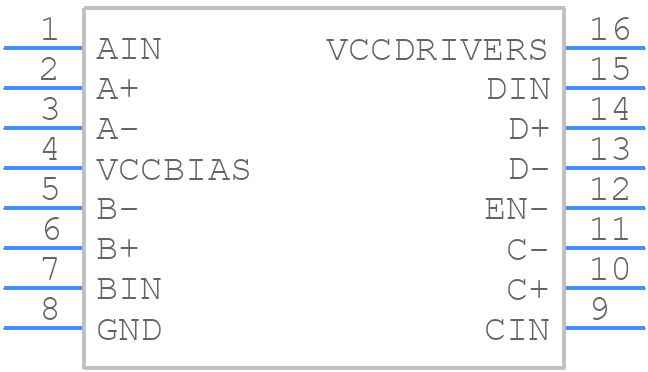

AEIC-7272-S16 - Avago Technologies

AEIC-7272-S16 Details

• Manufacturer Part Number:

  AEIC-7272-S16

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOP, SOP16,.25

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Avago Technologies

• YTEOL:

  6.38

• Differential Output:

  YES

• Driver Number of Bits:

  4

• High Level Input Current-Max:

  0.000004 A

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LINE DRIVER

• Interface Standard:

  GENERAL PURPOSE

• JESD-30 Code:

  R-PDSO-G16

• Length:

  9.89 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Out Swing-Min:

  1.9 V

• Output Characteristics:

  3-STATE

• Output Low Current-Max:

  0.02 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.7272 mm

• Supply Current-Max:

  18.5 mA

• Supply Voltage-Max:

  30 V

• Supply Voltage-Min:

  3.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  30 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  MILITARY

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Transmit Delay-Max:

  630 ns

• Width:

  3.9 mm
