AEK1013100M400R - Kyocera AVX

AEK1013100M400R Frequently Asked Questions (FAQs)

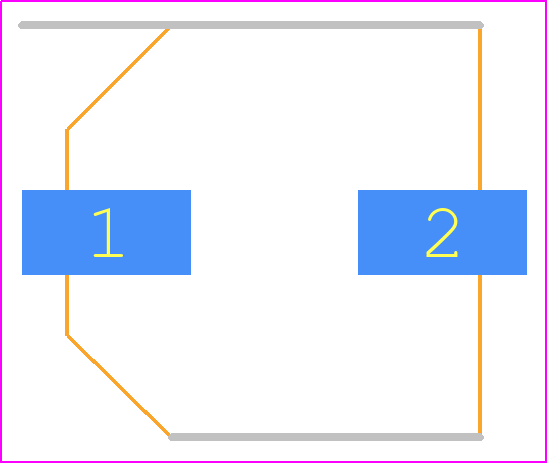

• What is the recommended land pattern for AEK1013100M400R?
  The recommended land pattern for AEK1013100M400R can be found in the Kyocera AVX Components' recommended land pattern document, which provides detailed information on the pad layout and dimensions for optimal performance and reliability.
• How do I handle the component during assembly to prevent damage?
  To prevent damage, it is recommended to handle the AEK1013100M400R component by the edges, avoiding touching the terminations or the ceramic body. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage.
• What is the maximum reflow temperature for AEK1013100M400R?
  The maximum reflow temperature for AEK1013100M400R is 260°C, with a recommended reflow profile of 3°C/sec ramp rate, 30 seconds above 220°C, and 10 seconds above 250°C.
• Can I use AEK1013100M400R in a high-vibration environment?
  Yes, AEK1013100M400R is designed to withstand high-vibration environments. However, it is recommended to follow the manufacturer's guidelines for vibration testing and to ensure that the component is properly secured to the PCB to prevent mechanical stress.
• How do I store AEK1013100M400R components to maintain their shelf life?
  To maintain the shelf life of AEK1013100M400R components, store them in their original packaging, away from direct sunlight, moisture, and extreme temperatures. The recommended storage conditions are -30°C to 30°C and 60% relative humidity.
