AEM10941-QFN - E-PEAS

Description: Power Management Specialized - PMIC PV Cell PMIC

Download AEM10941-QFN Model

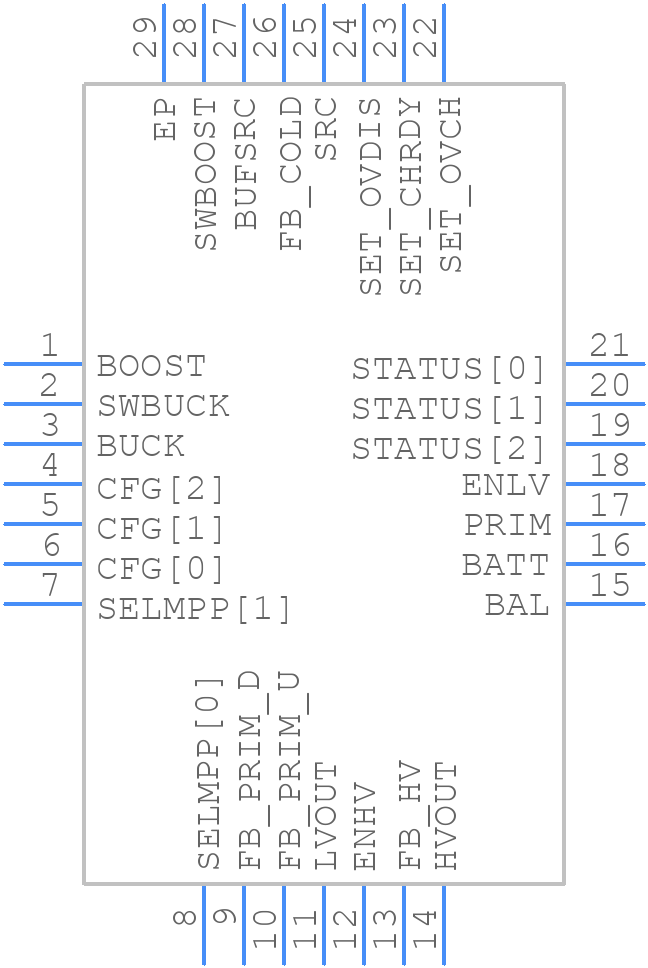

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AEM10941-QFN - E-PEAS PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - no-lead (QFN28 5x5mm)
click to zoom
3D Models
AEM10941-QFN - E-PEAS  - 3D model - Quad Flat No-Lead - no-lead (QFN28 5x5mm)
click to zoom

AEM10941-QFN Details

  • Manufacturer Part Number:

    AEM10941-QFN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    e-peas semiconductors

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PQCC-N28

  • Length:

    5 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    110 mA

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    0.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    4.12

  • Width:

    5 mm

AEM10941-QFN Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-connection for the power supply to minimize noise.
  • Use a high-quality, low-ESR capacitor (e.g., X5R or X7R) for energy storage. Ensure the capacitor is placed close to the AEM10941-QFN and connected to the VSTORE pin. Optimize the harvester's impedance matching for maximum power transfer.
  • Use a low-dropout linear regulator (LDO) with a low quiescent current (e.g., 1-2 μA) to minimize power consumption. Ensure the LDO's output voltage is within the AEM10941-QFN's recommended range (1.8-3.3 V).
  • Connect a capacitor (e.g., 10 nF) between the POR pin and GND. For BOD, connect a resistor (e.g., 1 kΩ) between the BOD pin and VCC. Ensure the POR and BOD thresholds are set according to the application's requirements.
  • Use a thermal pad or a heat sink to dissipate heat. Ensure good airflow around the device. Keep the ambient temperature within the recommended range (-40°C to 85°C) to maintain optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
