AFBR-2418Z - Avago Technologies

Description: Fiber Optic Receiver Optical 50MBd -24dBm 3.135V ~ 5.25V 30 mA

Download AFBR-2418Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

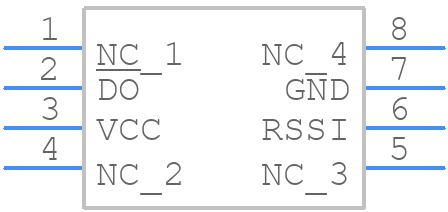

AFBR-2418Z - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
AFBR-2418Z - Avago Technologies PCB footprint - Other - Other - AFBR-2418Z-2
click to zoom
3D Models
AFBR-2418Z - Avago Technologies - 3D model - Other - AFBR-2418Z-2
click to zoom

AFBR-2418Z Details

  • Manufacturer Part Number:

    AFBR-2418Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    5

  • Additional Feature:

    IT ALSO HAS NOM-SUPPLY VOLTAGE 3V AND DATA RATE 50 MBD

  • Body Breadth:

    12.7 mm

  • Body Height:

    10.2 mm

  • Body Length or Diameter:

    12.7 mm

  • Connection Type:

    ST CONNECTOR

  • Emitter/Detector Type:

    PHOTODIODE

  • Fiber Optic Device Type:

    RECEIVER

  • Fiber Type:

    50/125, 62.5/125, MMF

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Operating Wavelength-Max:

    865 nm

  • Operating Wavelength-Min:

    792 nm

  • Operating Wavelength-Nom:

    820 nm

  • Package Style:

    DIP

  • Reception Type:

    DIGITAL

  • Responsivity:

    0.72 A/W

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)
