AFBR-2624Z - Avago Technologies

Description: Fibre Optic Transmitters, Receivers, Transceivers V-Link Horz 50MBd 50m POF, 3.3/5 V

Download AFBR-2624Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

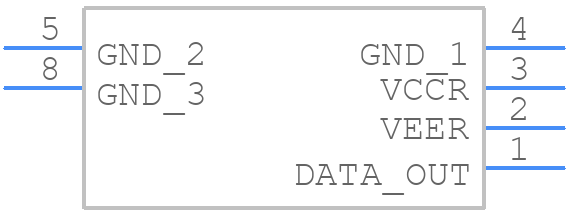

Symbol
AFBR-2624Z - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
AFBR-2624Z - Avago Technologies PCB footprint - Other - Other - AFBR-2624Z-3
click to zoom
3D Models
AFBR-2624Z - Avago Technologies - 3D model - Other - AFBR-2624Z-3
click to zoom

AFBR-2624Z Details

  • Manufacturer Part Number:

    AFBR-2624Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    5

  • Additional Feature:

    IT ALSO HAS SUPPLY VOLTAGE 4.75 TO 5.25 VOLTS

  • Built-in Feature:

    AMPLIFIER

  • Communication Standard:

    RS-232, RS-485

  • Emitter/Detector Type:

    PHOTODIODE

  • Fiber Optic Device Type:

    RECEIVER

  • Fiber Type:

    PCS, POF

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Operating Wavelength-Max:

    685 nm

  • Operating Wavelength-Min:

    630 nm

  • Operating Wavelength-Nom:

    658 nm

  • Reception Type:

    DIGITAL

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

AFBR-2624Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal reflections. A 50-ohm microstrip transmission line should be used for the RF signal path.
  • The device requires a single 3.3V power supply. A 10uF capacitor should be placed between the VCC pin and ground to filter out noise. A 1kohm resistor should be used to bias the VBIAS pin to 1.5V.
  • The device is rated for operation from -40°C to 85°C. However, optimal performance is achieved between 0°C to 70°C.
  • Use a spectrum analyzer to verify the RF signal frequency and amplitude. Check the DC power supply voltage and current consumption. Use a logic analyzer to verify the digital control signals. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • Yes, but impedance matching networks may be required to ensure optimal performance. Consult the datasheet and application notes for guidance on impedance matching.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFBR-2624Z Overview

Use the download button to access the AFBR-2624Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFBR-, or try a keyword search, such as Fiber Optic Receivers
